3 Pack of Grade 11 Fire Rated Ball Bearing Door Hinges 4" x 3" (2.5mm Thick)

MATERIAL:Steel

TYPE:Fire rated fire door and door hinges

STYLE:CE marked, ball bearing

FINISH:Choice of three traditional finishes - Matt Black, Black Nickel or Antique Brass

FIXINGS:30mm Twin Thread Hardened Pozi wood screws included

HINGE GRADE:11

FIRE RATING:BS EN 1935 certified

ADDITIONAL FEATURES:Hinges are supplied in a pack of 3. CE rated

Description

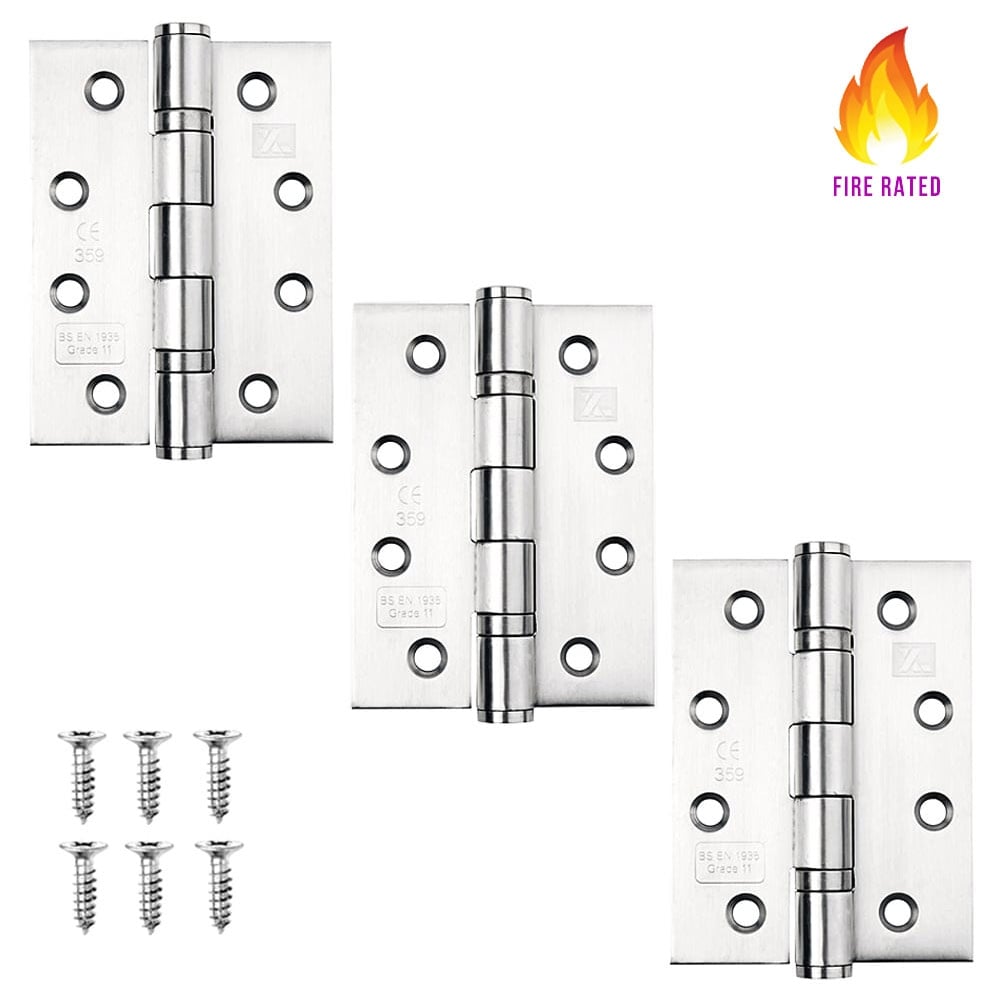

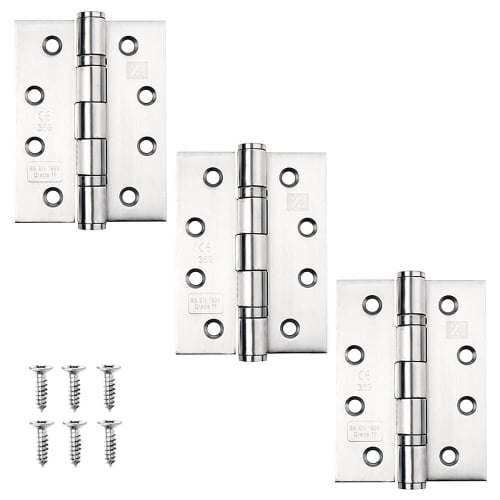

• Pack of 3 steel fire rated double ball bearing door hinges


• CE marked andBS EN 1935certified hinges which have achieved a Grade 11 hinge rating


• Tested and rated for use on 30/60 minute fire doors


• High corrosion resistance in accordance with EN 1670 standards


• Fitted with double ball bearing washers for a smooth door opening and closing action


• Ideal for commercial applications


• Suitable for doors up to 80kg (subject to door closer selection and its weight)


• Heavy duty -tested to 200,000 cycles


• Square corners


• Made from high quality steel with a choice of traditional metallic finishes


• We always recommend fitting ALL THREE HINGES per door


• 10g x 1.1/4��� twin thread hardened Pozi wood fixing screws included

Dimensions

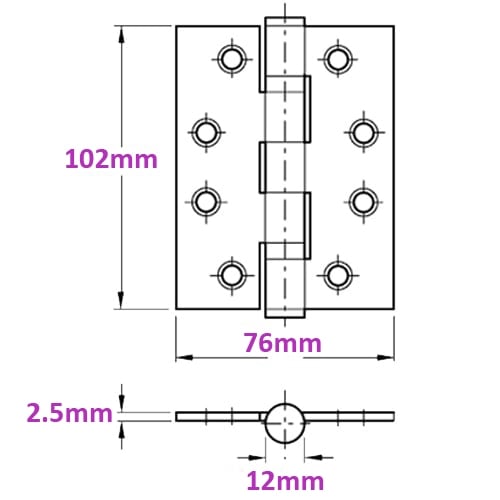

Please note that all dimensions are subject to a measurement tolerance of +/- 3mm

OVERALL HEIGHT:117mm

HINGE LEAF HEIGHT:102mm

OPEN WIDTH:76mm

HINGE LEAF THICKNESS:2.5mm

Technical Information

• Door hinges must be chosen in regards toTOTAL MASS, that is door + weight added by door close


• Please note that door closers can increase the load and wear of the hinges


• You must make sure the specification of the hinges matches that of the other door hardware fitted to ensure the door operates smoothly

MAINTENANCE:

Door maintenance, particularly on fire doors, fire exit routes and high traffic routes is an integral part of any well-planned and scheduled maintenance program within a building. Included with this schedule should be a regular minimum annual check on fixing screws, replacing any that are loose, and lubricant ion of the hinges using a fine machine oil such as '3 in 1' or similar ensuring that any floor finishes are protected, and any excess oil is wiped off on completion.


HINGE SPECIFICATION:

What is the 8 digit coding system used on BS EN 1935 ironmongery?

A similar classification applies to all building hardware product standards so that complementary items of hardware can be specified to, for instance, a common level of corrosion resistance, category of use etc.

Each digit refers to a particular feature of the product measured against the standards performance requirements.


DIGIT 1 : Category of Use

Grade 1 - Light duty
Grade 2 - Medium duty
Grade 3 - Heavy duty
Grade 4 - Severe duty


DIGIT 2 : Durability

Three grades are identified for single axis hinges.

European Standard

Grade 3 - 10,000 test cycles for light duty hinges on windows only
Grade 4 - 25,000 test cycles for light duty hinges on windows and doors
Grade 7 - 200,000 test cycles for medium, heavy and severe duty hinges on doors

DIGIT 3 : Door Mass and closing force

European Standard

10kg - 0
20kg - 1
40kg - 2
60kg - 3
80kg - 4
100kg - 5
120kg - 6
160kg - 7

DIGIT 4 : Fire resistance

Two grades are identified for single axis hinges:

Grade 0 - Not approved for use on fire/smoke door assemblies
Grade 1 - Suitable for use on fire/smoke door assemblies and tested to BS EN 1634-1

DIGIT 5 : Safety

Single axis hinges are required to satisfy the essential requirements of safety in use. Therefore, only one grade is identified.


DIGIT 6 : Corrosion resistance

Five grades of corrosion resistance are identified in accordance with EN 1670:

Grade 0 - No corrosion resistance
Grade 1 - Mild resistance
Grade 2 - Moderate resistance
Grade 3 - High resistance
Grade 4 - Very high resistance


DIGIT 7 : Security

Two grades are identified for single axis hinges:

Grade 0 - Not suitable for burglar resistant door assemblies
Grade 1 - Suitable for applications requiring a degree of security


DIGIT 8 : Hinge Grade

Fourteen grades are identified in this European Standard and are listed below:

Grade 1 - Window - 10,000 test cycles - 10kg door mass
Grade 2 - Window - 10,000 test cycles - 20kg door mass
Grade 3 - Window or Door - 25,000 test cycles - 20kg door mass
Grade 4 - Door - 200,000 test cycles - 20kg door mass
Grade 5 - Window - 10,000 test cycles - 40kg door mass
Grade 6 - Window or Door - 25,000 test cycles - 40kg door mass
Grade 7 - Door - 200,000 test cycles - 40kg door mass
Grade 8 - Window - 10,000 test cycles - 60kg door mass
Grade 9 - Window or Door - 25,000 test cycles - 60kg door mass
Grade 10 - Door - 200,000 test cycles - 60kg door mass
Grade 11 - Door - 200,000 test cycles - 80kg door mass
Grade 12 - Door - 200,000 test cycles - 100kg door mass
Grade 13 - Door - 200,000 test cycles - 120kg door mass
Grade 14 - Door - 200,000 test cycles - 160kg door mass
