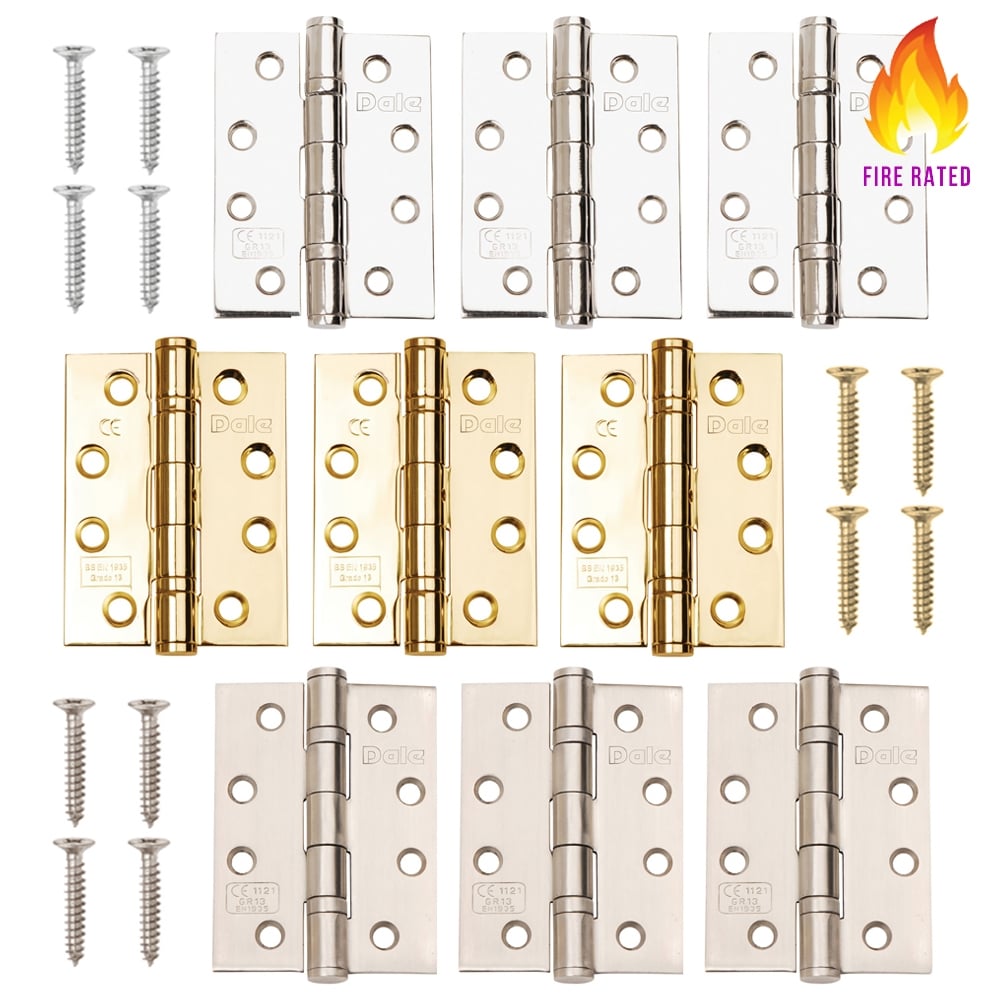

3 x Grade 13 Fire Rated Ball Bearing Door Hinges 4

MATERIAL: Stainless Steel

TYPE: External and Fire Rated Door Hinges

STYLE: Ball Bearing

FINISH: Polished Stainless Steel, Satin Stainless Steel or Polished Electro Brass

FIXINGS: 30mm Pozi Twin Thread Screws

FIRE RATING: Grade 13 and BS EN 1935:2002

ADDITIONAL FEATURES: CE rated with excellent Corrosion Resistance

Description

This fire rated hinge has been constructed with a high quality stainless steel which is finished in either a satin, polished or brass effect. The hinge comes with all the required screws to fit to your external/fire door.

• Pack of 3 stainless steel fire rated ball bearing hinges


• Ideal for use on external front or back doors due to the hinges excellent corrosion resistance


• Also suitable for 30 and 60 minute fire rated doors


• CE and BS EN 1935 certified hinges which have achieved the highest grade 13 rating


• Ideal for commercial applications, for use on fire doors and heavier standard and exterior doors


• Suitable for doors up to 120kg (subject to door closer selection and its weight)


• Tested to 200,000 cycles

• 10g x 1.1/4” twin thread hardened pozi wood screw


• We recommend fitting all 3 hinges per door




Technical Information

• Door hinges must be chosen in regards to TOTAL MASS, that is door + weight added by door closer


• Please note that door closers can increase the load and wear of the hinges


• You must make sure the specification of the hinges matches that of the other door hardware fitted to ensure the door operates smoothly

BS EN 1935 specification:




What is the 8 digit coding system used on BS EN 1935 ironmongery?


A similar classification applies to all building hardware product standards so that complementary items of hardware can be specified to, for instance, a common level of corrosion resistance, category of use etc.

Each digit refers to a particular feature of the product measured against the standards performance requirements.


DIGIT 1 : Category of Use

Grade 1 - Light duty
Grade 2 - Medium duty
Grade 3 - Heavy duty
Grade 4 - Severe duty


DIGIT 2 : Durability

Three grades are identified for single axis hinges.

European Standard

Grade 3 - 10,000 test cycles for light duty hinges on windows only
Grade 4 - 25,000 test cycles for light duty hinges on windows and doors
Grade 7 - 200,000 test cycles for medium, heavy and severe duty hinges on doors

DIGIT 3 : Door Mass and closing force

European Standard

10kg - 0
20kg - 1
40kg - 2
60kg - 3
80kg - 4
100kg - 5
120kg - 6
160kg - 7

DIGIT 4 : Fire resistance

Two grades are identified for single axis hinges:

Grade 0 - Not approved for use on fire/smoke door assemblies
Grade 1 - Suitable for use on fire/smoke door assemblies and tested to BS EN 1634-1

DIGIT 5 : Safety

Single axis hinges are required to satisfy the essential requirements of safety in use. Therefore, only one grade is identified.


DIGIT 6 : Corrosion resistance

Five grades of corrosion resistance are identified in accordance with EN 1670:

Grade 0 - No corrosion resistance
Grade 1 - Mild resistance
Grade 2 - Moderate resistance
Grade 3 - High resistance
Grade 4 - Very high resistance


DIGIT 7 : Security

Two grades are identified for single axis hinges:

Grade 0 - Not suitable for burglar resistant door assemblies
Grade 1 - Suitable for applications requiring a degree of security


DIGIT 8 : Hinge Grade

Fourteen grades are identified in this European Standard and are listed below:

Grade 1 - Window - 10,000 test cycles - 10kg door mass
Grade 2 - Window - 10,000 test cycles - 20kg door mass
Grade 3 - Window or Door - 25,000 test cycles - 20kg door mass
Grade 4 - Door - 200,000 test cycles - 20kg door mass
Grade 5 - Window - 10,000 test cycles - 40kg door mass
Grade 6 - Window or Door - 25,000 test cycles - 40kg door mass
Grade 7 - Door - 200,000 test cycles - 40kg door mass
Grade 8 - Window - 10,000 test cycles - 60kg door mass
Grade 9 - Window or Door - 25,000 test cycles - 60kg door mass
Grade 10 - Door - 200,000 test cycles - 60kg door mass
Grade 11 - Door - 200,000 test cycles - 80kg door mass
Grade 12 - Door - 200,000 test cycles - 100kg door mass
Grade 13 - Door - 200,000 test cycles - 120kg door mass
Grade 14 - Door - 200,000 test cycles - 160kg door mass

Dimensions

HEIGHT: 102mm

LEAF THICKNESS: 3mm

LEAF OPEN WIDTH: 76mm
