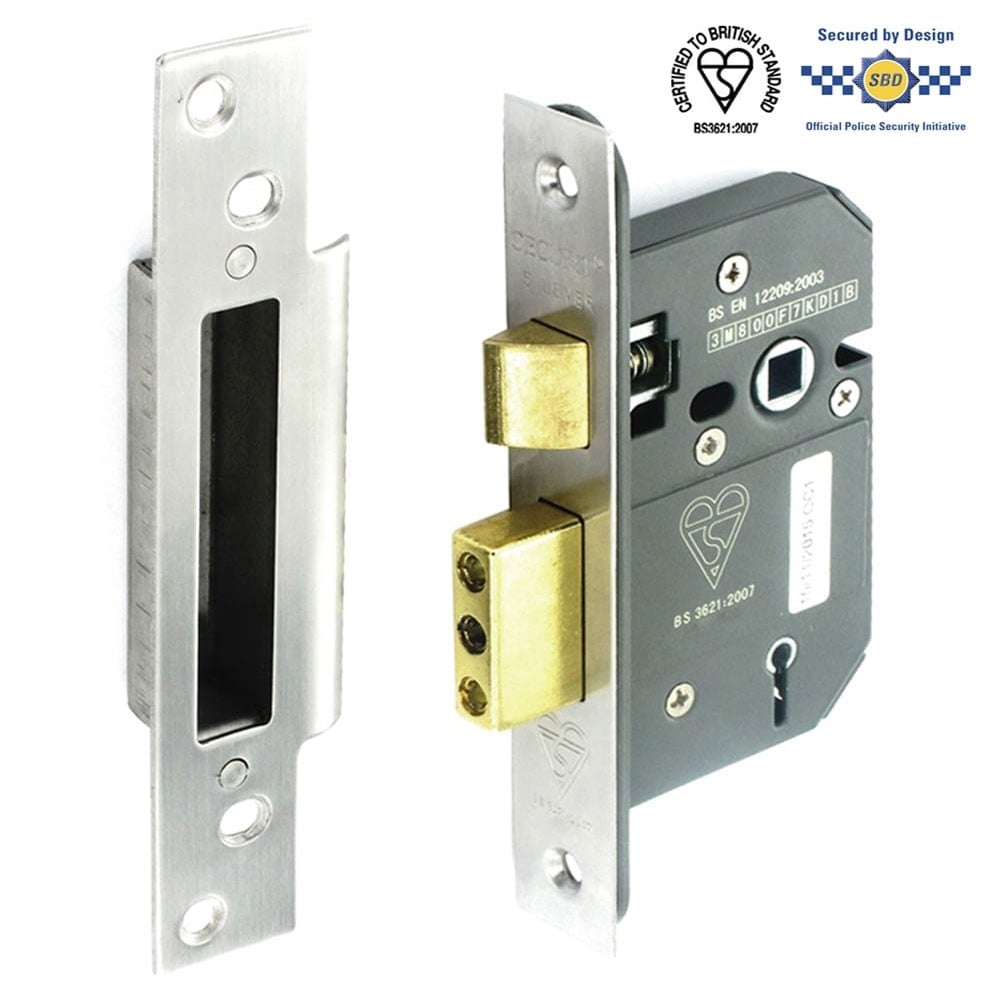

5 Lever High Security Mortice Door Sash Lock with 2 Keys (BS3621 Certified)

Code:
MP/B17

This item is out of stock and not available to purchase.

MATERIAL:SteelTYPE:Mortice sash lockSTYLE:5 leverFINISH:Nickel or Brass PlatedFIXINGS:All fixings includedADDITIONAL FEATURES:BS 3621:2007 rating. Supplied with 2 keys Description High qualityBritishstandard certified five lever mortice door sash lock Ultra secure - 5 ...Read More

Create a wishlist

"Very happy quality and speed of de…"

Mr I E Peplow

Description


MATERIAL:Steel

TYPE:Mortice sash lock

STYLE:5 lever

FINISH:Nickel or Brass Plated

FIXINGS:All fixings included

ADDITIONAL FEATURES:BS 3621:2007 rating. Supplied with 2 keys






Description


  • High qualityBritishstandard certified five lever mortice door sash lock

  • Ultra secure - 5 lever lock for high security applications

  • Kitemarked lock

  • 63mm backset measurement

  • Certified to British Standard BS3621:2007

  • Easy to reverse brass sash bolt for universal left or right door handing

  • Hardened steel anti-drill plates

  • Anti-saw bolts

  • Fitting instructions and detailed hole marking guide included

  • 10 year manufacturer guarantee



Dimensions


CASE WIDTH:63mm / 75mm

CASE HEIGHT:110mm

CASE DEPTH: 15mm

FOREND LENGTH:161mm

FOREND WIDTH:26mm

BACKSET:44mm (handle will sit 4.4cm from door edge) / 57mm(handle will sit 5.7cm from door edge)



Technical Information




Each digit refers to a particular feature of the product measured against the standards performance requirements.


DIGIT 1 : Category of Use

Three grades are identified:

Grade 1 - Low frequency of use with a high incentive to exercise care and a small chance of misuse, e.g. internal residential doors

Grade 2 - Medium frequency of use by people with some incentive to exercise care but where there is some chance of misuse, e.g. internal office doors

Grade 3 - High frequency of use by public or others with little incentive to exercise care and with a high chance of misuse, e.g. public doors


DIGIT 2 : Durability

Twelve grades are identified with maximum figures for deadbolt and snib operation, and latch bolt operation with and without side load.

DIGIT 3 : Door Mass and closing force

Nine grades are identified with maximum figures for closing force at various door masses. Note: Closing force is from a standing start: i.e. fully extended latch bolt in contact with striking plate at start of test.


DIGIT 4 : Fire resistance

Two grades are identified for single axis hinges:

Grade 0 - Not approved for use on fire/smoke door assemblies
Grade 1 - Suitable for use on fire/smoke door assemblies and tested to BS EN 1634-1 etc


DIGIT 5 : Safety

(N/A)


DIGIT 6 : Corrosion resistance

Eight grades are identified neutral salt-spray with and without temperature resistance


DIGIT 7 : Security

Seven grades are identified with maximum figures relating to physical attack, with or without drilling.


DIGIT 8 : Field of door application

Fifteen grades are identified for differing applications - hinged or sliding doors with rim or mortice locks with either keyless egress from inside or key locking from both sides. The grading determines which application is appropriate. In addition, there is a requirement that lock/latch should not be removable from outside or, for grades K to R, from inside using "standard" tools. Grades H and P require support for the lock case when installed.


DIGIT 9 : Type of key operation and locking

Nine grades are identified for differing types of keys operation. The grading determines how the lock is assessed for deadlocking. There is a maximum key torque operating requirement of 1.5Nm and a minimum key strength requirement of 2.5Nm.


DIGIT 10 : Type of spindle operation

Nine grades are identified relating to the number of differs and levers:

  • Grade 0: no requirements

  • Grade A: minimum 3 detaining elements

  • Grade B: minimum 5 detaining elements

  • Grade C: minimum 5 detaining elements, extended number of effective differs

  • Grade D: minimum 6 detaining elements

  • Grade E: minimum 6 detaining elements, extended number of effective differs



Digit 11 : Key identification

9 grades are identified relating to the number of differs and levers, grade 0 relates to a latch with no locking action.

Dimensions

Size 63mm
75mm

Details

Finish Brass Plated
Nickel Plated
