ACO Threshold 1000mm Plastic Channel Drain & Silver or Black Grate - A15

Code:
19000
Brand:

Slimline Domestic Level Threshold Door Drainage ACO Threshold A15 channel drain eliminates water ponding in front of house entrances, available in either a silver or black aluminium finish. The grating is suitable for pedestrian traffic and is quick and easy to install. The t...Read More

Create a wishlist

"fast and efficient"

D J Gilbert

Description

Slimline Domestic Level Threshold Door Drainage

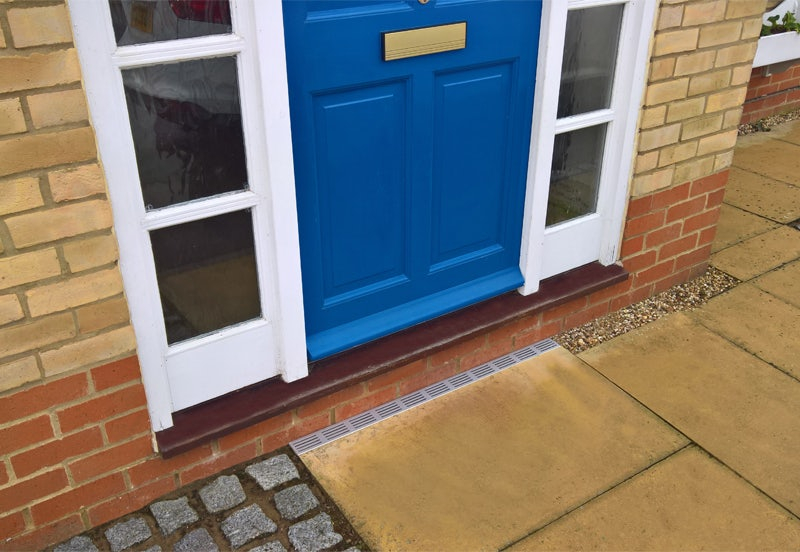

ACO Threshold A15 channel drain eliminates water ponding in front of house entrances, available in either a silver or black aluminium finish. The grating is suitable for pedestrian traffic and is quick and easy to install. The threshold is only 60mm wide and sits flush to the door for maximum discretion, allowing water to be drained away quickly and efficiently. Whilst ACO Threshold channel drain has been built with long-life and durability in mind, a choice of built-in silver or black Heelguard grates offer aesthetic design too.

  • Quick and easy installation
  • Removable Heelguard aluminium grating available in silver or black
  • Outlet available for connection to underground drainage
  • System ideal for use with 60mm block paving
  • Body of the unit manufactured from extruded plastic
  • CE marked and fully certified to Load Class A 15 BS EN 1433:2002
  • Compliant with Part M of the Building Regulations for Endland and Wales and Section 4 of the Scottish Building Standards

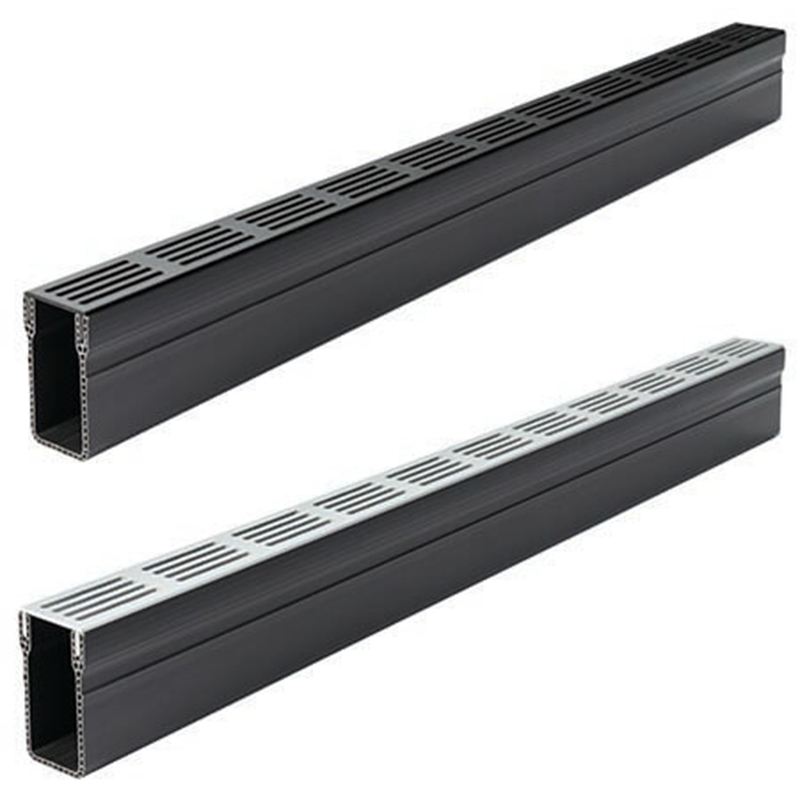

This ACO Threshold channel drain comes with an attached silver aluminium grate with Heelguard design. Heelguard design means that high heels can’t become lodged in the grate as the slits are too narrow, reducing the risk of injury to people entering and exiting the property or damage to the channel drain grate. The extruded plastic base of ACO Threshold channel drain only bolsters the security of the drain once the system has been bedded in concrete.

ACO Threshold channel drain can be connected, thanks to 80mm diameter outlets, to domestic soakaways and accessories like a drain connector, 80mm bottom outlet and closing end cap complete the drain system.

Dimensions

Length: 1000mm
Width: 61mm
Depth: 100mm
Weight: 1.63kg

Dimensions

Length 1 Metre

Details

Colour Silver
