SLIK Bi-Folding Door Track and Gear Kit (For door sizes up to 914mm)

Code:
S/SLIKBF
Free UK Delivery

This item is out of stock and not available to purchase.

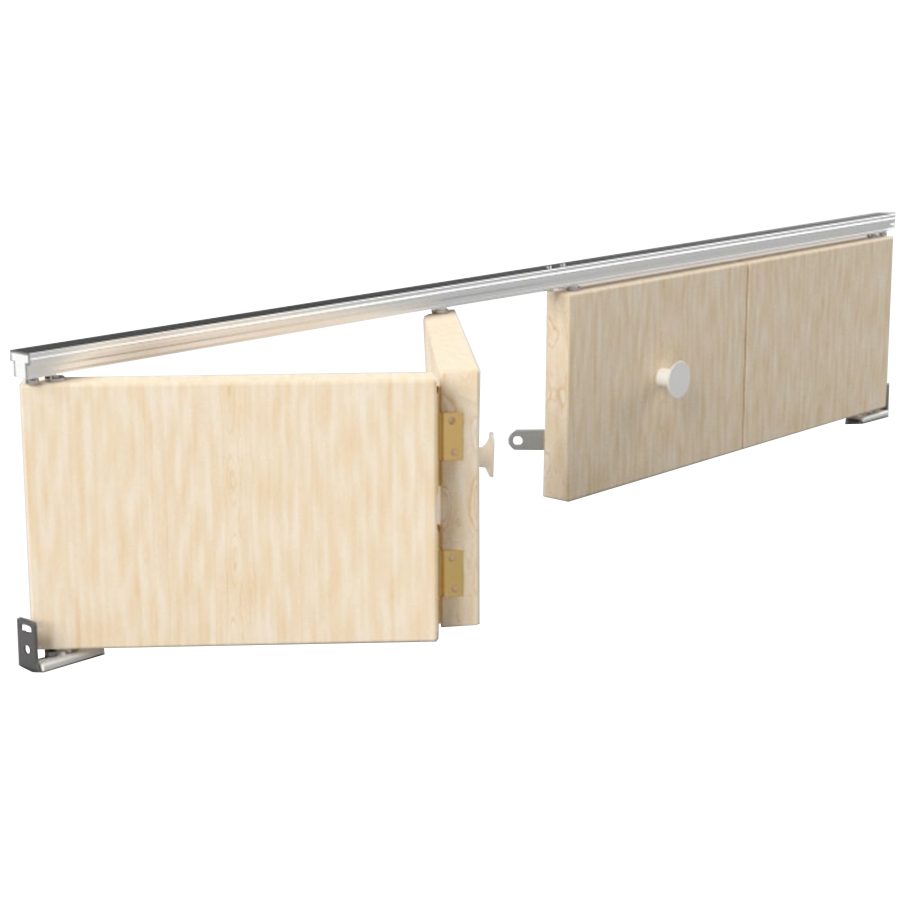

To open up your doorway, the Stormguard Folding Door Track and Gear Kit gives you a great bi-fold door solution. The SLIK mechanism allows your doors to fold to either side, leaving most of the floor clear for ease of access. It's suitable for door widths of up to 914mm, and t... Read More

Create a wishlist

"Door worth waiting for."

Margaret of Suffolk

Description

To open up your doorway, the Stormguard Folding Door Track and Gear Kit gives you a great bi-fold door solution. The SLIK mechanism allows your doors to fold to either side, leaving most of the floor clear for ease of access. It's suitable for door widths of up to 914mm, and thicknesses of between 25mm and 34 mm. It's been designed for fitting doors that will fold either side of an opening, but two tracks can be butted up together, up to 2338mm, with four door leafs. In this instance you'll need to fix the joint of the track at the centre so prevent it from interfering with the operation of the slider. It's not suitable for heavyweight doors, with a maximum weight per door of 15 kg.

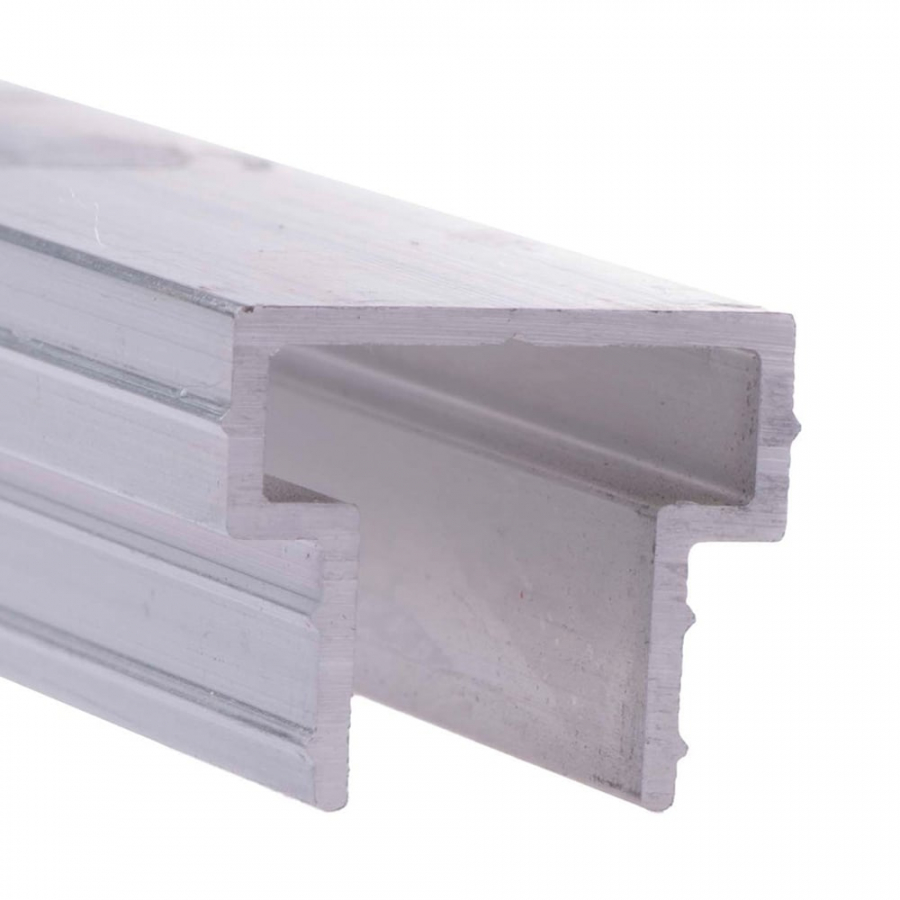

The Stormguard bi-fold kit includes the aluminium top track with top bracket, slide guide, top and bottom pivots, jamb brackets, hinges, door aligner and fixing screws. The track itself can be easily cur down to 24" (610mm), 27" (686mm) and 30" (762mm) door sizes.

Features & Benefits: SLIK Bi-Folding Door Track and Gear Kit (For door sizes up to 914mm)

  • Suitable for door widths up to 914mm
  • The track can be cut to match your opening width
  • Bi-fold kit includes a top track with top pivot bracket, slide guide, top and bottom pivots, jamb brackets, hinges, door aligner and fixing screws
  • Designed for fitting doors to fold either side of an opening
  • 3'0" (914mm) kit suitable for two doors only
  • Track can be easily cut down to suit 24" (610mm), 27" (686mm) and 30" (762mm) door sizes
  • Suitable for doors from 25mm to 34mm thick
  • Tracks can be butted up together up to an 8'0" (2438mm) length with 4 door leafs
  • The joint of the track will need to be in the centre of the opening so it does not interfere with the operation of the slider
  • This product has been designed for two doors on each side of the opening. We do not recommend fitting more than two doors on either side.

Suited to

  • Maximum weight per door is 15kg (33lbs) each Maximum system weight 60kg (132lbs) Doors from 1" (25mm) to 1 3/8" (34mm) thick Doors up to 2'0" (600mm) wide 3'0" (914mm) kit suitable for two doors only Suitable for doors from 25mm to 34mm thick Top Track Length: 914mm Top Track Height: 20mm Top Track Depth: 24mm

Product Specification

Dimensions

Size 914mm

Details

Finish Aluminium Material Aluminium

Downloads

There are no product downloads to show.

Questions & Answers

Question:

Hi, I assume that this system only uses a top track & hinge at bottom of one door? Also when the doors are fully open do both doors close together or is there a space between them? Regards Ron

Answer:

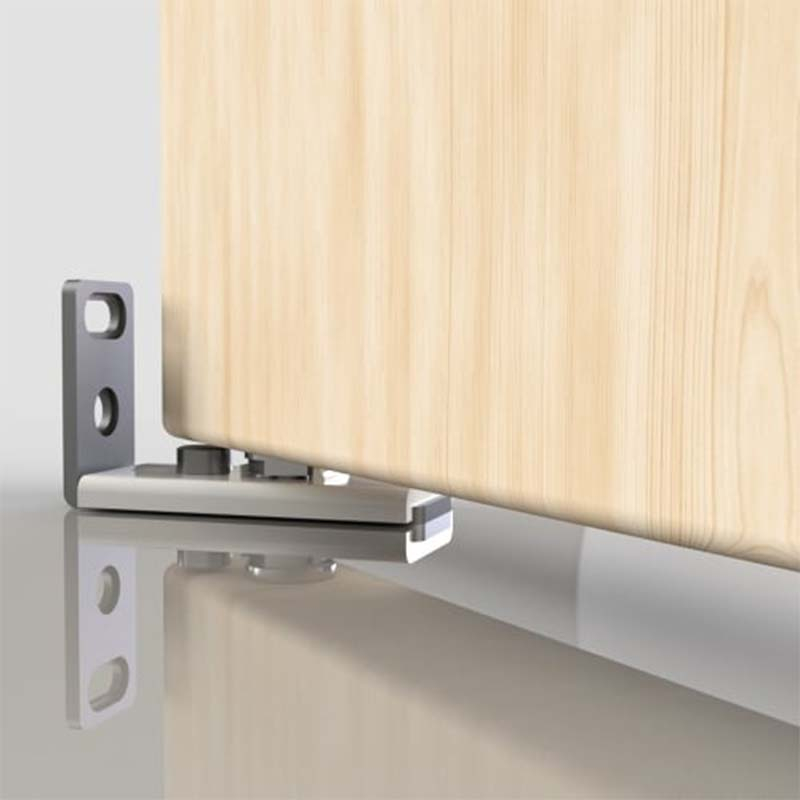

The system uses a top track and guide panel and peg at the bottom of the door. There will be a few mm gap between the doors when closed.

Question:

Good morning, I’m making small wooden window shutters I would like to hang 4 separate fold back doors….. ie; 2 left 2 right. Can I buy additional parts to make this product a 4 door kit. Many thanks.

Answer:

Unfortunately, there is not currently a 4-door option for these tracks. The largest option is the 08SL0061219 (1219mm wide).

Question:

Hi I am looking at your Slik bi-folding door track. I am installing 2 x 686 doors to open to the left. So only opening from right to left. Do you sell anything that would be more suitable than buying 2 of these sets? Thank you

Answer:

The largest size available is the 08SL0061219 (1219mm).
