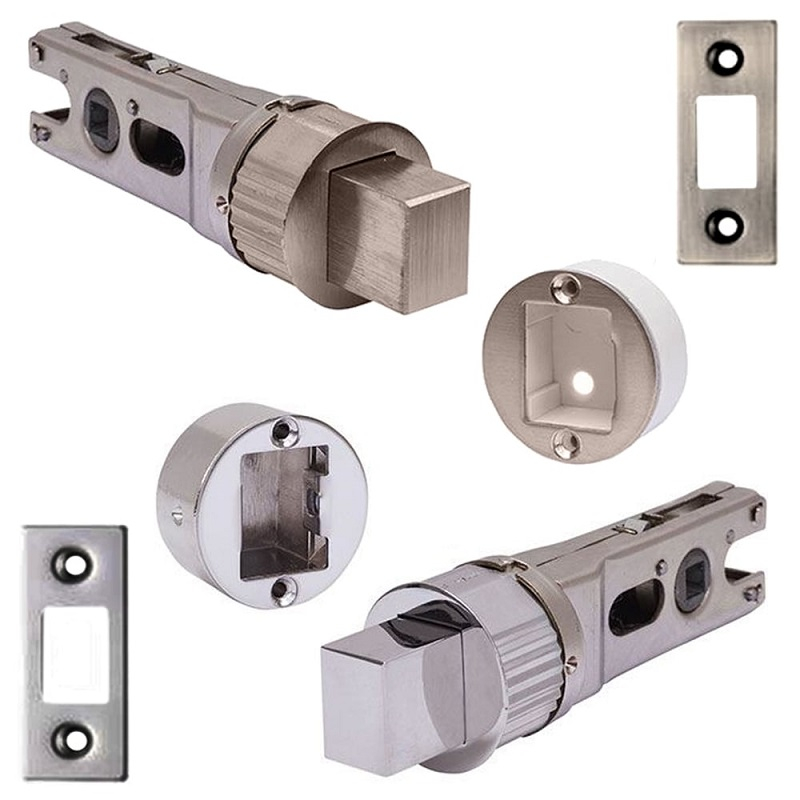

Excel Designer Internal Mortice Tubular Smart Deadbolt 71mm

Code:
XH/228
Brand:

This item is out of stock and not available to purchase.

This item is intended for use with a bathroom turn & release Rotating latch bolt for universal handling (left or right handed) Optional spare rectangular strike plate and dust socket Bolt through with a round forend and round smart keep Unique design and quick i...Read More

Create a wishlist

"Ordering online straightforward"

PETER LEVIS

Description

  • This item is intended for use with a bathroom turn & release
  • Rotating latch bolt for universal handling (left or right handed)
  • Optional spare rectangular strike plate and dust socket
  • Bolt through with a round forend and round smart keep
  • Unique design and quick installation
  • Can be used with round rose, square rose and back plate lever furniture
  • Smartbolts have a 57mm backset with a 5mm follower to suit bathroom turn and release
  • Complete with striker plates, screws and dust socket
  • Instructions included



MATERIAL: Zinc Alloy
TYPE: Tubular deadbolt
STYLE: Smartbolt
FINISH: Polished chrome plate and satin nickel plated
FIXINGS: All fixing screws included

Please note: spindle not included

Dimensions

Please note: The case measurement refers to the overall length of the latch while the backset refers to the distance between the end of the face plate and the centre of the spindle hole.

CASE SIZE: 71mm
BACKSET: 57mm
DEADBOLT FOREND DIAMETER: 25mm
SMART KEEP STRIKE PLATE DIAMETER: 32mm
SMART KEEP DIAMETER: 32mm
SMART KEEP DEPTH: 15mm
RECTANGULAR STRIKE PLATE HEIGHT: 58mm
RECTANGULAR STRIKE PLATE WIDTH: 38mm
RECTANGULAR STRIKE PLATE HOLE TO HOLE MEASUREMENT: 42mm
SPINDLE HOLE DIAMETER: 5mm



Details

Finish Polished Chrome Plated
Satin Nickel Plated
