Double Pocket Door Cavity Sliding System (doors sold separately)

MATERIAL: Metal frame cassette with aluminium track
TYPE: Double pocket door sliding system
STYLE: Flush modern design
FIXINGS: Screws, door brackets and plugs included
ADDITIONAL INFORMATION: Suitable for use with 35 - 45mm thickness doors

Description

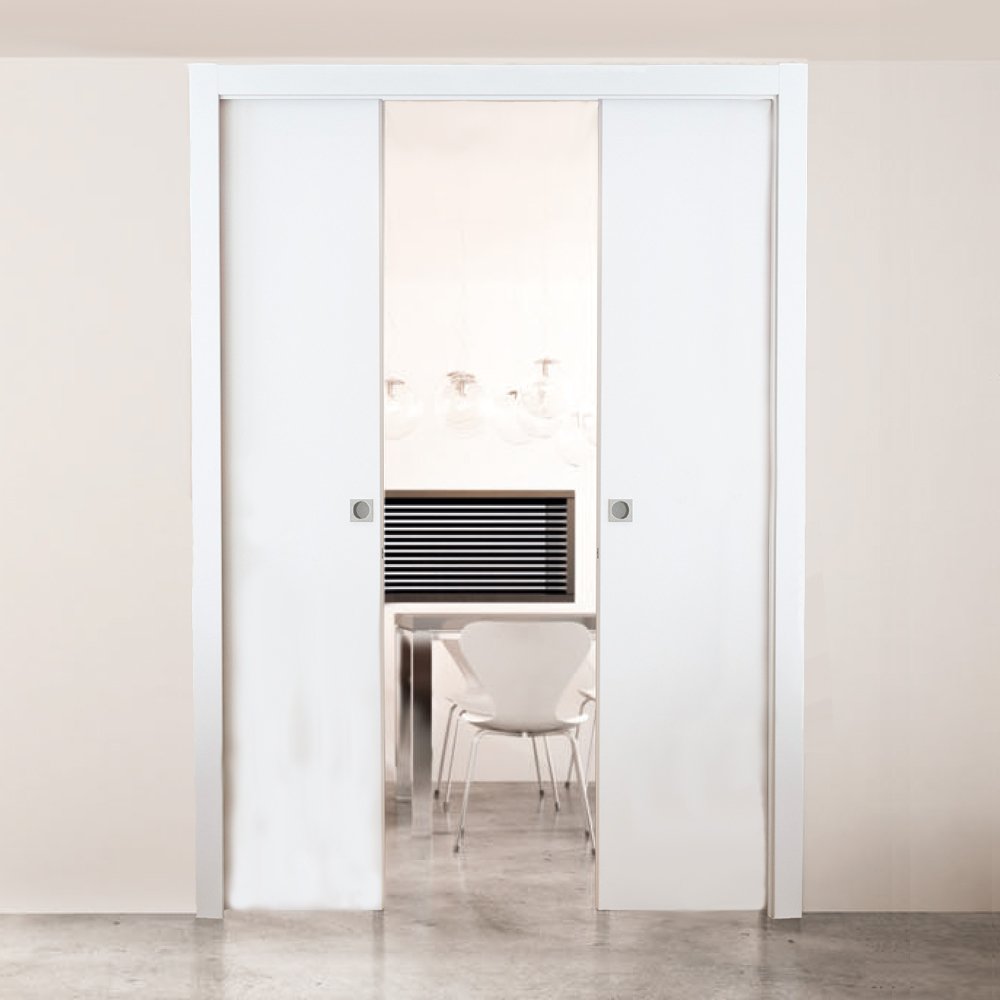

The Scrigno sliding door system utilises a pre-fabricated metal cassette frame system to create a double pocket door. This modern system allows two opposite internal doors to slide into a pocket in the wall cavity, creating a contemporary feature point for your home as well as gaining vital extra space.

• Each boxed set includesall the main components needed to install a long lasting, smooth running sliding door set including a pre-made steel cassette pocket.
• A unique pre-assembled and packaged double pocket door
• Ready assembled for fast site installation
• Two rooms can easily be transformed into a single space
• Time and space saving in your room - gain up to 2.6m space back compared to traditional door openings
• Great as use as a sliding room divider in bedrooms, living rooms, offices and dining rooms
• This design allows doors between 35mm-45mm thick to be installed with a finished wall of 125mm
• Perfect for small spaces where a traditional doors would restrict space
• Pre-fabricated metal cassette ensures a simple, quick installation
• Available for masonry and plasterboard walls
• Easy access and quiet operation
• Modern and contemporary finish
• Endpost, crosspieces, cassette edge covers, door brushes and seals included with all systems
• Maximum door weight is 100kg
• We always recommend that doors must be pre-finished prior to installation with pocket door system
• Final adjustments to height must be done prior to fixing trim and architraves
• Please note:Architrave and door not included



WHAT'S INCLUDED IN THE PACK?

Metal frame cassette

Aluminium track

1 x Track bracket
1 x Horizontal space bars
2 x Cassette edge covers
1 x Crosspiece
2 x Brush seals
1 x Joint tongue
2 x Adjustable hanger
1 x Retaining hook
2 x Door stoppers
1 x Door guide
5 x Fixing spacers

PLUS:all necessary screws and door brackets included

ACCESSORIES ARE AVAILABLE FOR THIS ITEM:

Double simultaneous opening and closing system (sold separately)

• For double doors only
• Can be retrospectively fitted
• Maximum door weight 35kg

Soft close mechanism- to dampen softly close the sliding door (sold separately)

• Minimum door width of 700mm required
• Can be retrospectively fitted
• Maximum door weight 35kg

Self closing mechanism- automatically pulls the door closed each time the door had been opened (sold separately)

• Once fitted this reduces the clear opening by 50mm
• Maximum door weight 40kg
• Includes damper system
• Can be retrospectively fitted

Dimensions

27" x 78" System (686mm x 1981mm):

Structural Opening Size: (W) 2832mm x (H) 2080mm
Walk through Area: (W) 1312mm x (H) 1970mm
Cassette Width: 700mm
Weight: 68kg
Box Dimensions (H x W x D): 920 x 224 x 140mm

30" x 78" System (762mm x 1981mm):

Structural Opening Size: (W) 3084mm x (H) 2080mm
Walk through Area: (W) 1464mm x (H) 1970mm
Casette Width: 750mm
Weight: 74kg
Box Dimensions (H x W x D): 970 x 224 x 140mm

33" x 78" System (838mm x 1981mm):

Structural Opening Size: (W) 3536mm x (H) 2080mm
Walk through Area: (W) 1616mm x (H) 1970mm
Cassette Width: 900mm
Weight: 84kg
Box Dimensions (H x W x D): 1120 x 224 x 140mm

36" x 78" System (914mm x 1981mm):

Structural Opening Size: (W) 3688mm x (H) 2080mm
Walk through Area: (W) 1768mm x (H) 1970mm
Cassette Width: 900mm
Weight: 84kg
Box Dimensions (H x W x D): 1120 x 224 x 140mm

Metric 626mm x 2040mm System:

Structural Opening Size: (W) 2520mm x (H) 2140mm
Walk through Area: (W) 1200mm x (H) 2030mm
Cassette Width: 600mm

Metric 726mm x 2040mm System:

Structural Opening Size: (W) 2920mm x (H) 2140mm
Walk through Area: (W) 1400mm x (H) 2030mm
Cassette Width: 700mm

Metric 826mm x 2040mm System:

Structural Opening Size: (W) 3320mm x (H) 2140mm
Walk through Area: (W) 1600mm x (H) 2030mm
Cassette Width: 800mm

Metric 926mm x 2040mm System:

Structural Opening Size: (W) 3720mm x (H) 2140mm
Walk through Area: (W) 1800mm x (H) 2030mm
Cassette Width: 900mm

Maximum Door Thickness: 35-44mm
Finished Wall Thickness: 125mm
Maximum Door Weight: 100kg

Fitting Instructions

Detailed Installation Instructions are available here(opens in new window)

Scrignoguarantees that its frames for sliding doors are manufactured in compliance with the quality standards envisaged by the quality system certified to UNI EN ISO 9001-2008 standards.

Scrigno also offers a 2 year guarantee on all components
