Dynasty Single Pocket Door Cavity Sliding System FW125 (33

MATERIAL: Metal frame cassette and aluminium track

TYPE: Single pocket door cavity sliding system

STYLE: Sliding door kit for plasterboard inner walls

FIXINGS: All fixings for basic kit included

ADDITIONAL FEATURES: Suitable for use with 35 - 45mm thickness doors

Description

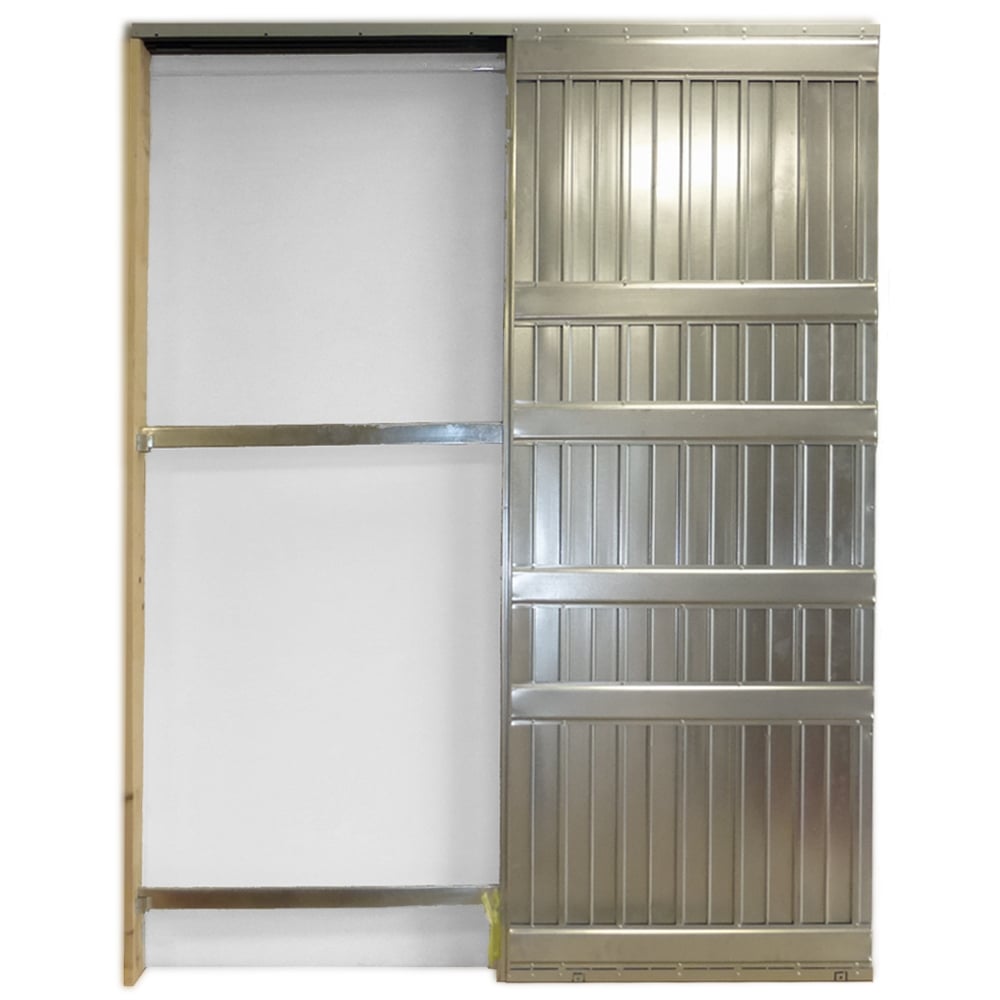

The Dynasty quick fit pocket door cassette is ready assembled for stud and plasterboard inner walls and designed to accommodate a single sliding door. It is particularly suitable for kitchens, bathrooms, and all projects where you need to save space and to have easy access.

• High quality modern system that allows an internal door (not included) to slide into a pocket in the wall cavity.
• Perfect for small spaces instead of a hinged door .
• The rigid cassette framing system is supplied pre-assembled saving time on site .
• Allows doors between 35mm - 45mm thick to be installed with a finished wall of 125mm
• Two units can be linked with an accessory pack to form a pair where required
• (double leaf pocket door kit available here)

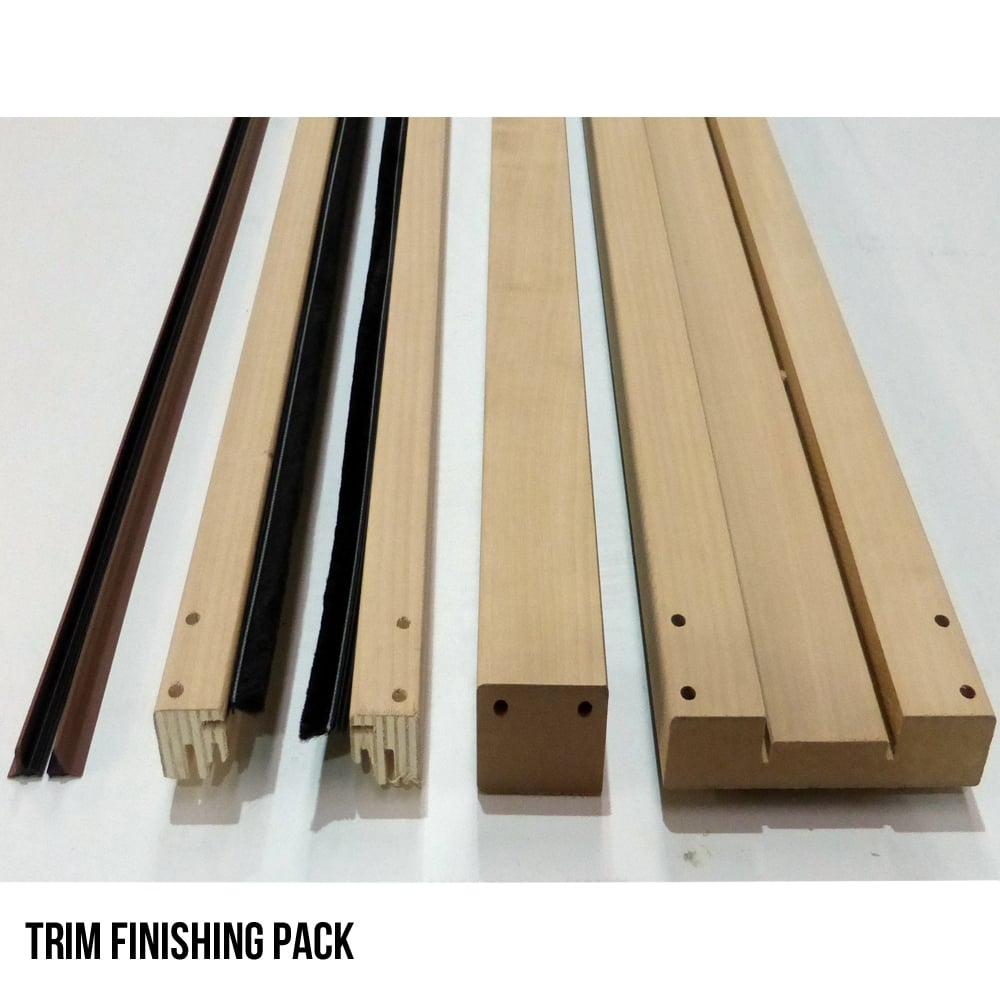

• Timber accessory Trim Finishing Pack is available with this system (sold seperately). This contains softwood trim, covers and seals that are required to finish your installed system.
• Link kit to combine two single pocket doors systems and create a double sliding door available (sold seperately)
• This system allows you to easily change your door in the future without structural alteration to the wall
• Fast installation - can be fitted in far less time compared to Flat Pack models
• Door is fitted after installation of cavity system to avoid damaging door
• Soft close 'damper' unit for a smooth closing action is available for this system (sold separately)

Instructions included

We always recommend that doors must be pre-finished prior to installation with pocket door system

Final adjustments to height must be done prior to fixing trim and architraves

Please note: We recommend using 20mm screws with this kit (NOT 25mm)

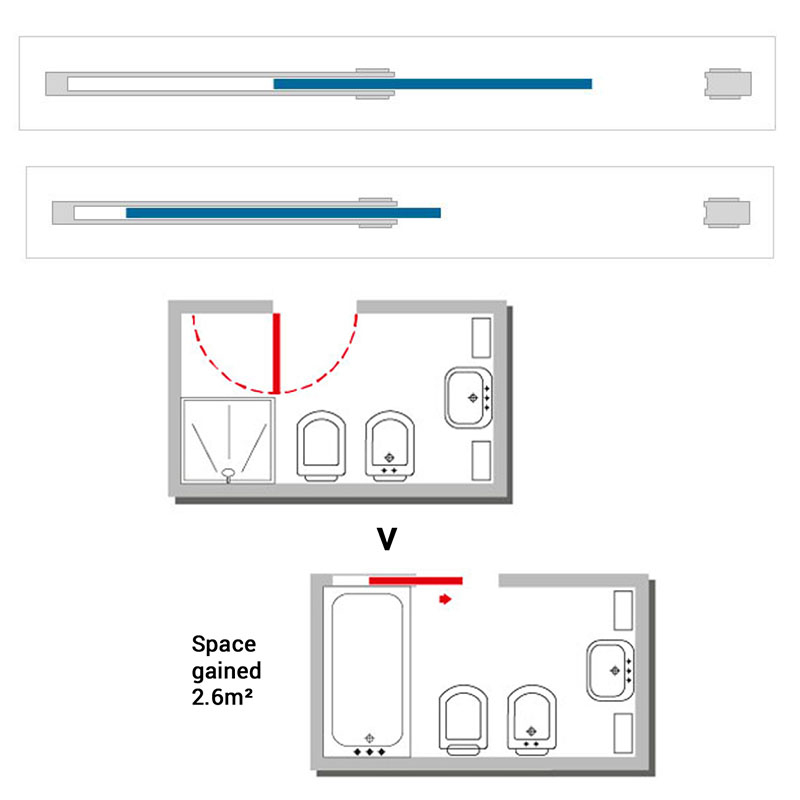

HOW DOES A CAVITY POCKET DOOR SYSTEM WORK?

Pocket doors are designed to remove the unusable space within buildings. By removing the footprint created by traditional hinged doors, users can make the most of their space.

Cavity pocket door systems are ideal for en suites, living rooms, corridors, bathrooms and office spaces.

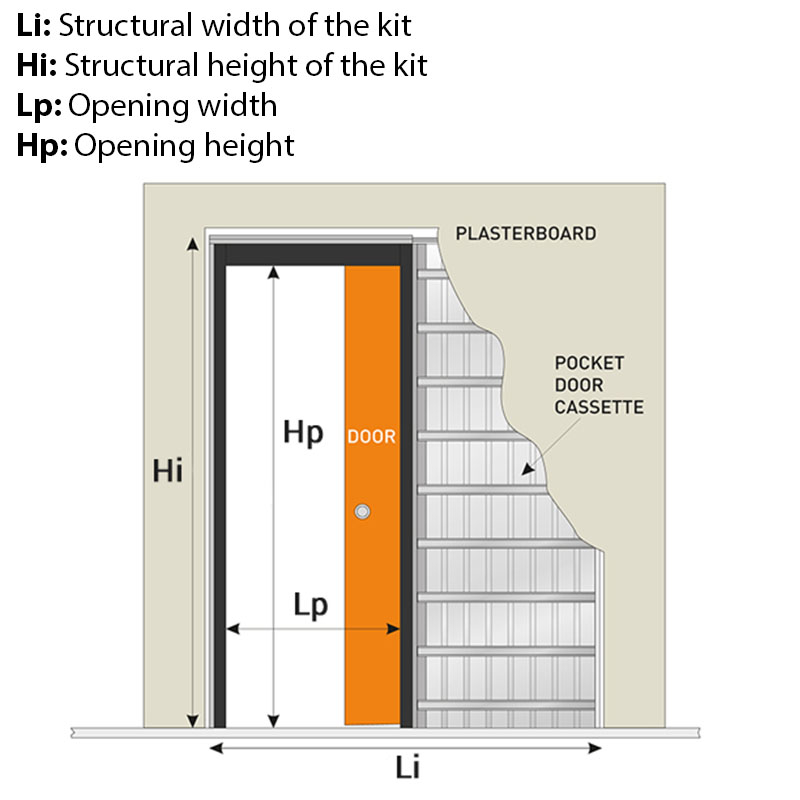

Li: Structural width of the kit

Hi: Structural height of the kit

Lp: Opening width

Hp: Opening height

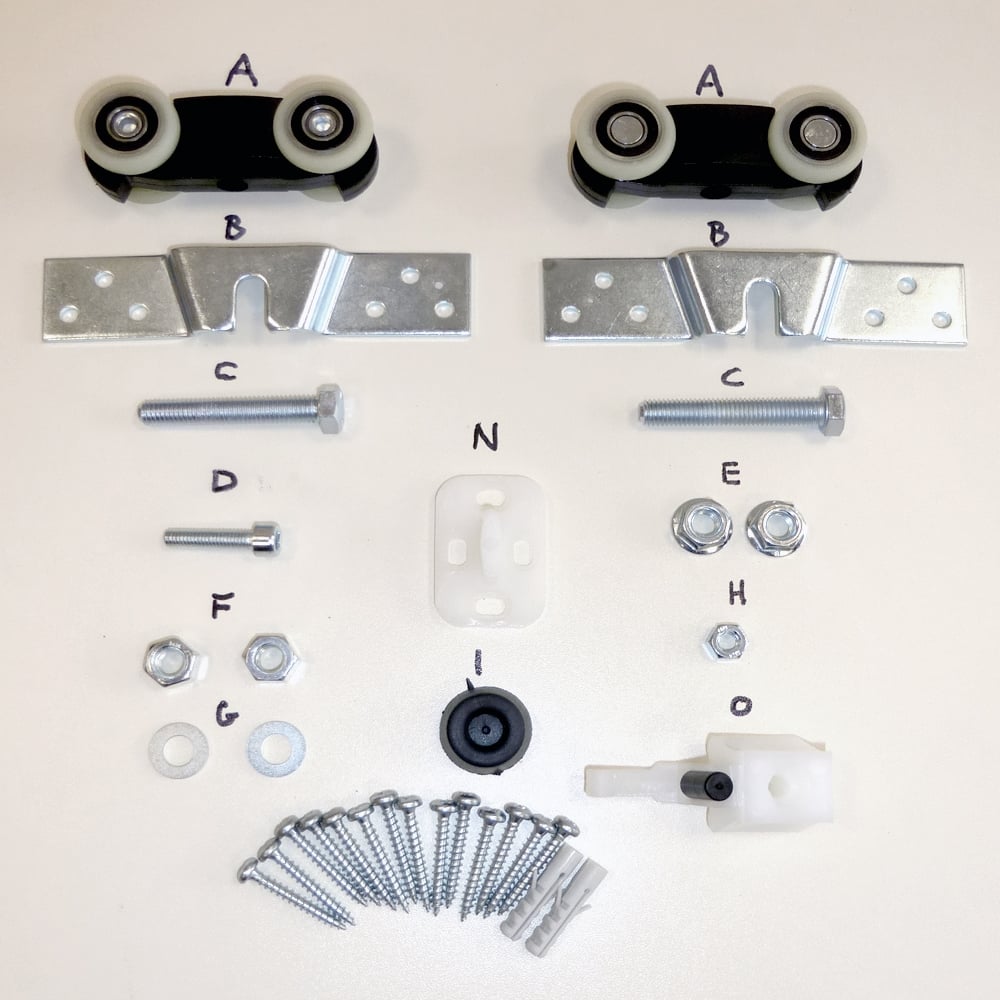

WHAT'S INCLUDED IN THE PACK?

1 x Pre-assemble metal frame cassette

1 x Aluminium track

1 x Wooden jamb

2 x Horizontal space bars

2 x Adjustable hangers (A)

2 x Door brackets (B)

1 x Retaining hook (O)

1 x Door stop (I)

1 x Door guide (N)

Plasterboard screws and fixing nuts

Wall plugs

PLEASE NOTE: Fixings are supplied inside of the cassette to prevent damage during shipping.

Dimensions

27" x 78" System (686mm x 1981mm):

STRUCTURAL OPENING SIZE: (W) 1430mm x (H) 2052mm

WALK THROUGH AREA: (W) 661mm x (H) 1971mm

FINISHED WALL x INTERNAL SPACE: 125mm x 67mm

MAXIMUM DOOR THICKNESS: 50mm

CASSETTE WIDTH: 696mm

BOX DIMENSIONS (L x W x D): 2243mm x 845mm x 110mm

30" x 78" System (762mm x 1981mm):

STRUCTURAL OPENING SIZE: (W) 1581mm x (H) 2052mm

WALK THROUGH AREA: (W) 737mm x (H) 1971mm

FINISHED WALL x INTERNAL SPACE: 125mm x 67mm

MAXIMUM DOOR THICKNESS: 50mm

CASSETTE WIDTH: 790mm

BOX DIMENSIONS (L x W x D): 2243mm x 845mm x 110mm

33" x 78" System (838mm x 1981mm):

STRUCTURAL OPENING SIZE: (W) 1733mm x (H) 2052mm

WALK THROUGH AREA: (W) 813mm x (H) 1971mm

FINISHED WALL x INTERNAL SPACE: 125mm x 67mm

MAXIMUM DOOR THICKNESS: 50mm

CASSETTE WIDTH: 850mm

BOX DIMENSIONS (L x W x D): 2243mm x 845mm x 110mm

Technical Information

ALERT: There may be sharp edges on the metal cassette so when installing PLEASE USE GLOVES!

GROOVING YOUR DOOR:

Door grooving is required prior to fitting your chosen door to the pocket door system and is when the bottom edge of the door is grooved to fit in the floor guide of a pocket door.
