ERA Stainless Steel Casement Window Restrictor Stay 11.5mm Right handed

Name: ERA Stainless Steel Casement Window Restrictor Stay 11.5mm Right handed
Brand: ERA
SKU: E/7B002
Price: 2.05 GBP
Availability: Discontinued

OFFER

Code:

E/7B002

Brand:

ERA

Free UK Delivery

MATERIAL: Stainless SteelTYPE: Casement window restrictor stayFINISH: Satin Stainless SteelFIXINGS: Supplied with required fixing screws Description This simple and effective restrictor stay prevents your casement window opening beyond a certain point fro... Read More

View full product details

View questions about this product

Create a wishlist

Brian

Description

MATERIAL: Stainless Steel

TYPE: Casement window restrictor stay

FINISH: Satin Stainless Steel

FIXINGS: Supplied with required fixing screws

Description

This simple and effective restrictor stay prevents your casement window opening beyond a certain point from inside and outside
Ideal for children's bedrooms, guest rooms and other uses where you wish to prevent a window opening fully for ventilation as well as increased safety and security reasons
Sprung opening and closing action with a quick release
Suitable for top or side opening casement style windows

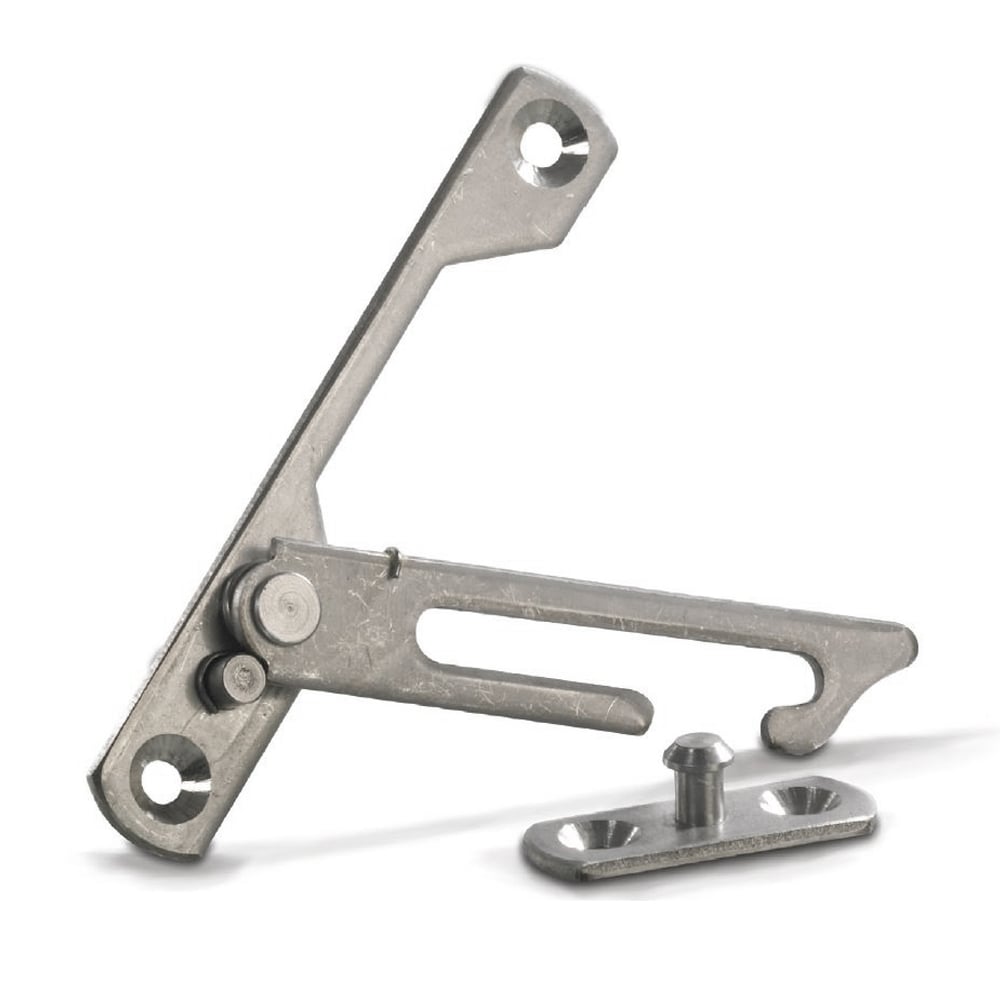

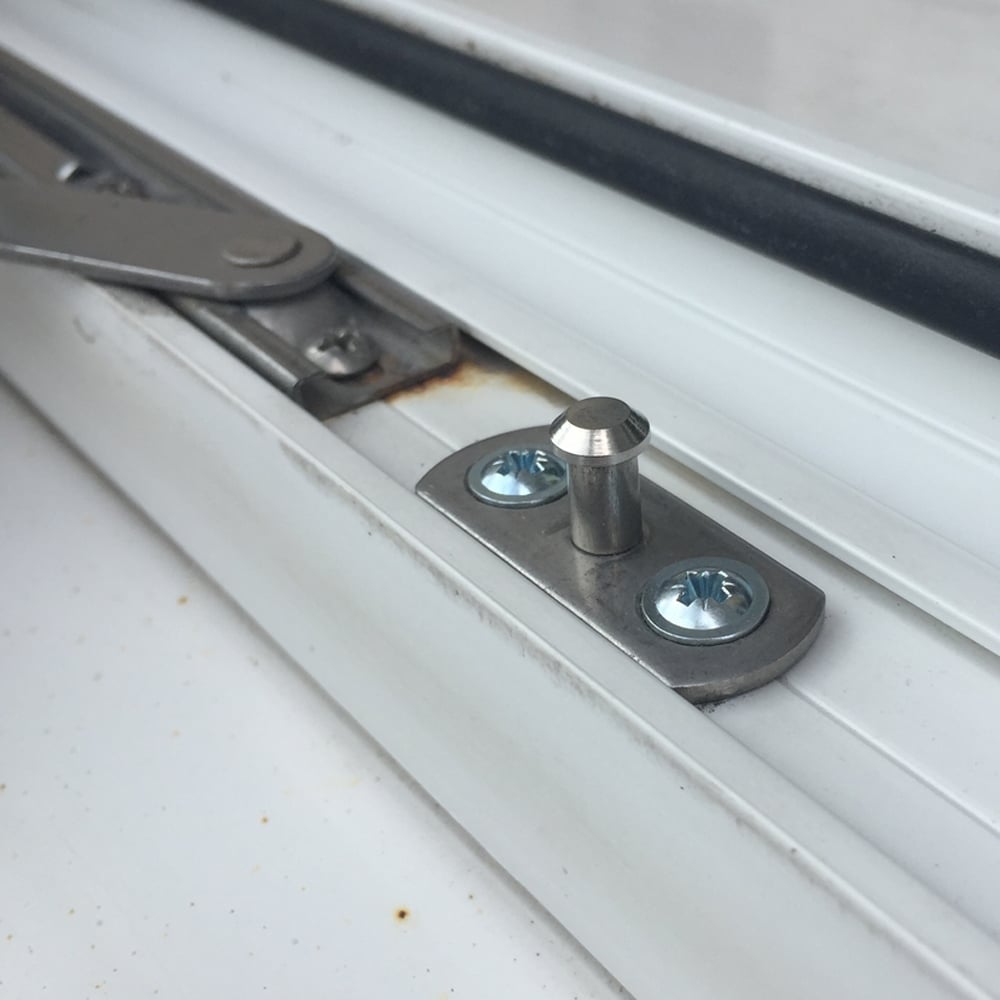

Pack includes the restrictor and a stud plate - the restrictor is fitted to the window and the stud plate is fitted to the frame. Can be positioned at the bottom or side of window
When fitted the window the restrictor limits window opening to a maximum of approximately 80mm
Manufactured in high quality, authentic stainless steel

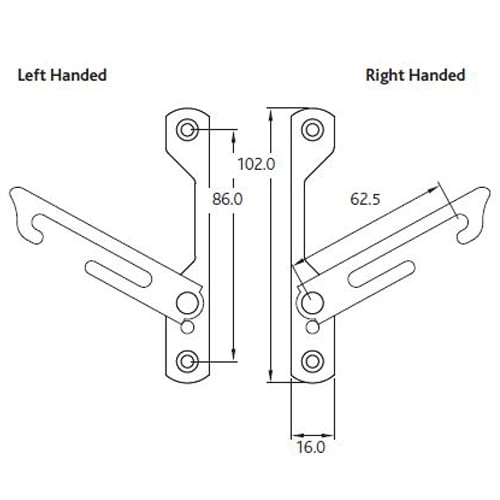

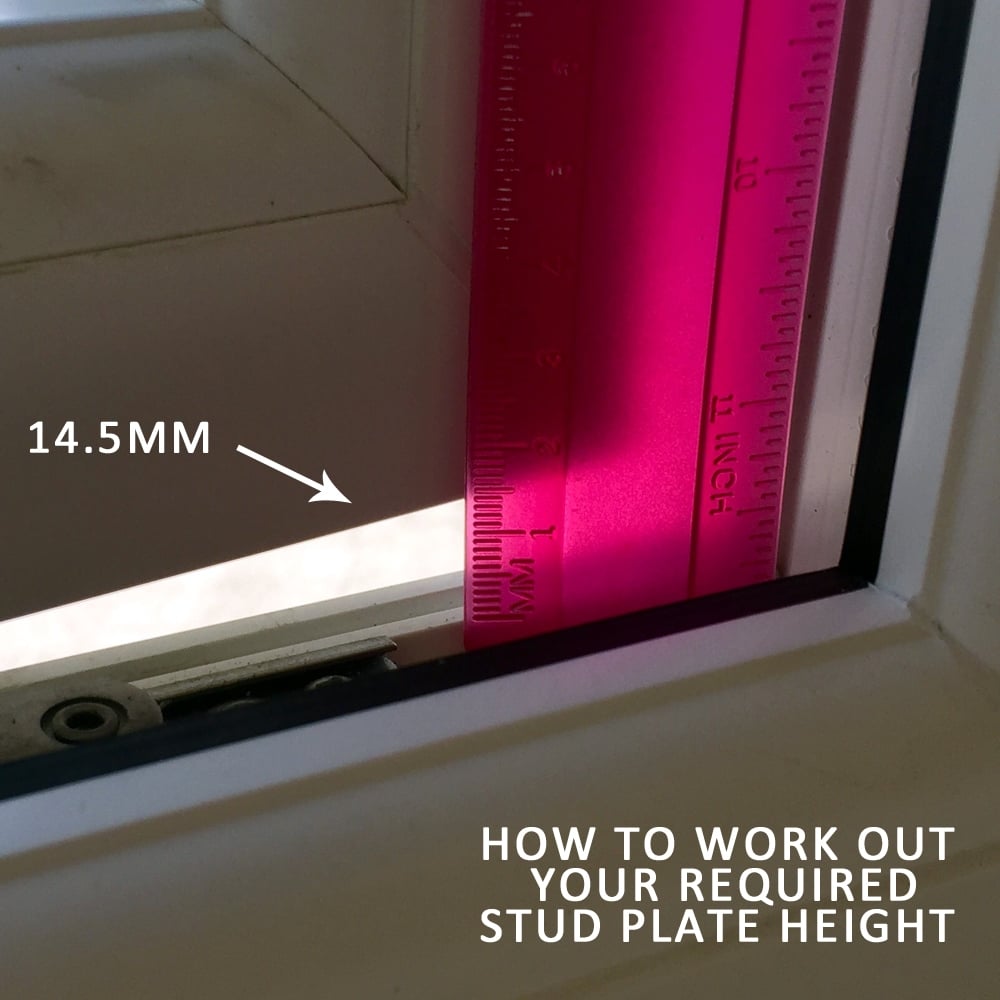

Available in two stud heights (11.5mm and 14.5mm) and in left handed and right handed configurations to suit most casement window fittings and designs. Use our diagram in the image gallery and in the technical information to find out what measurement is required to decide on which stud height to choose
Fully concealed when the window is closed
Maximum corrosion resistance
Can be easily retrofitted
Screws into euro groove to supplement existing devices
Supplied with fixing screws
10 year mechanical warranty

Dimensions

Technical Information

FITTING NOTES:

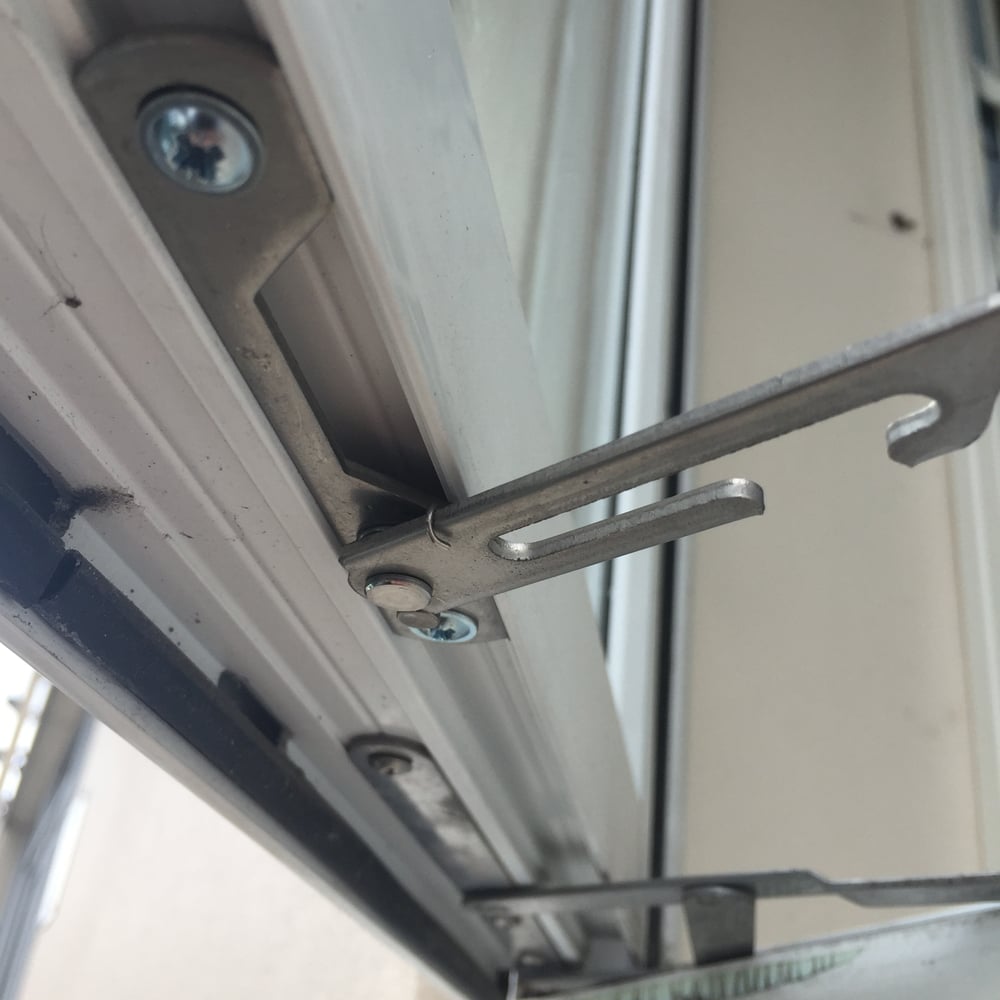

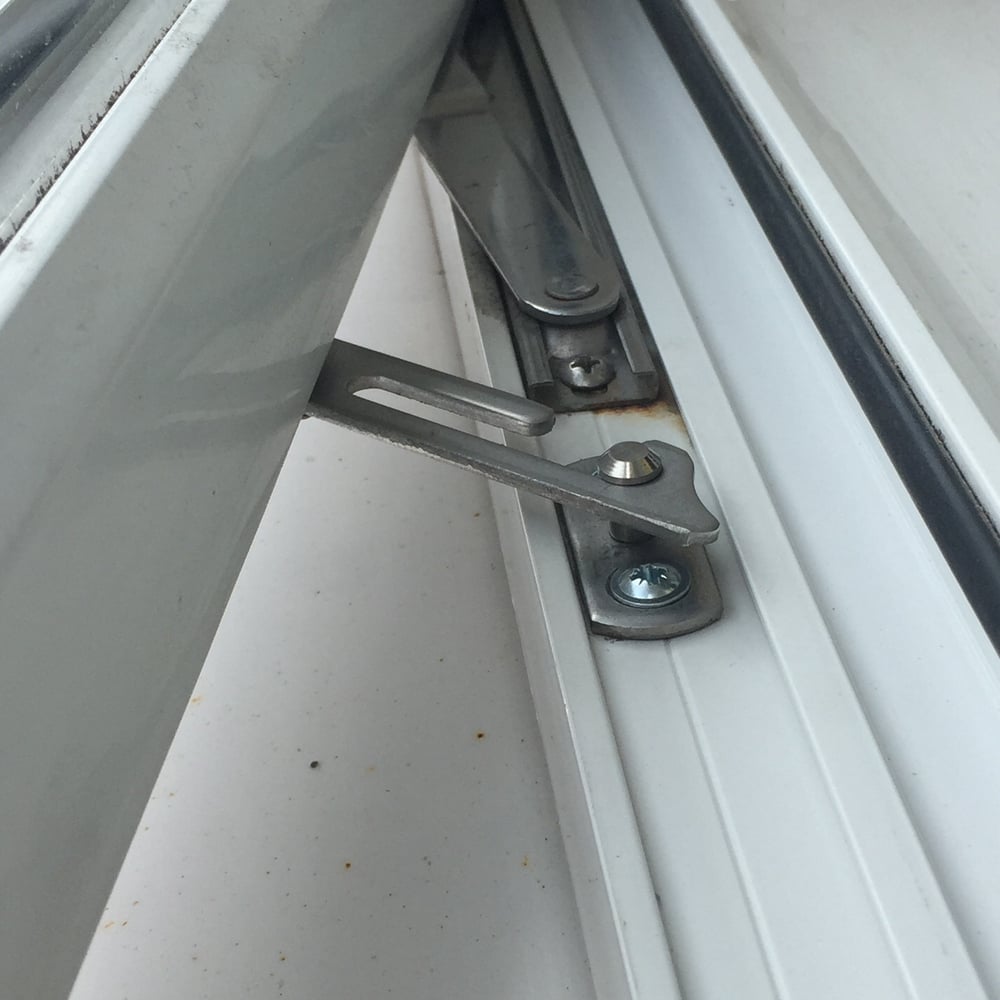

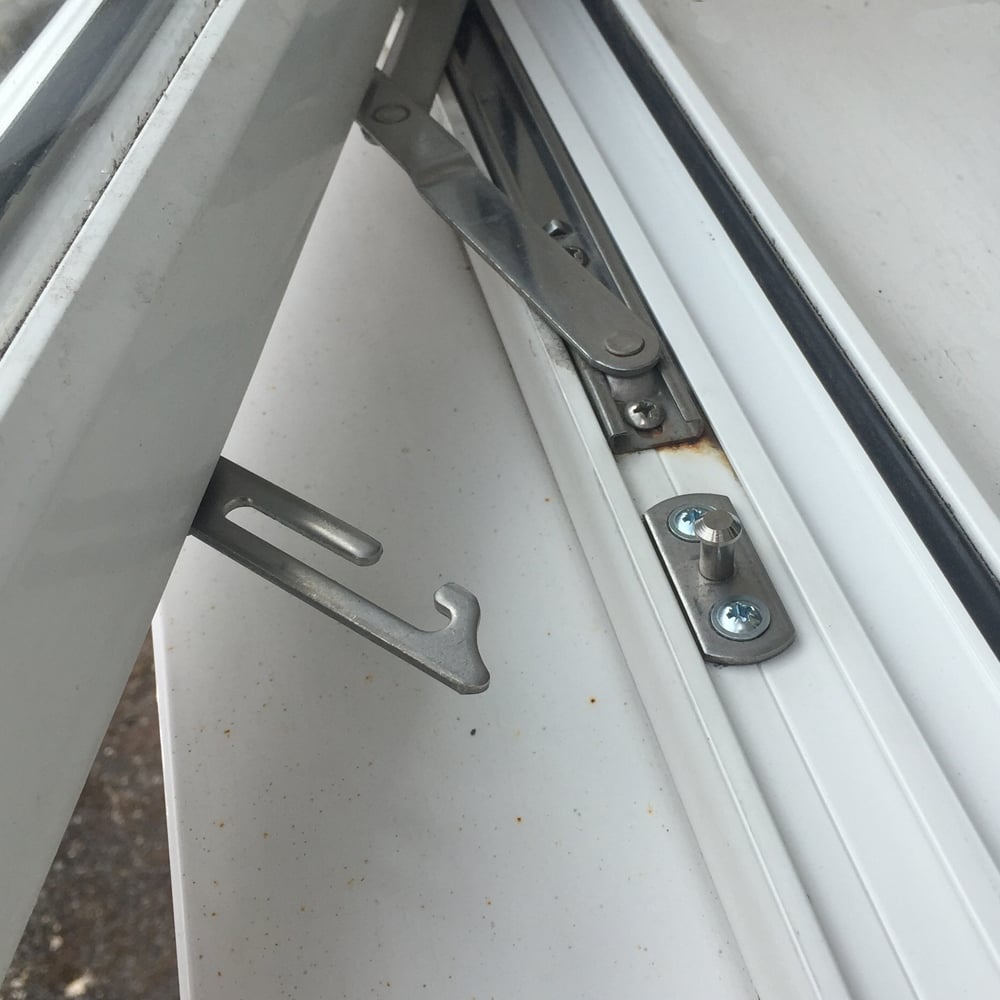

When fitting and prior to fixing with the screws, ensure the stud aligns with the gap on the restrictor arm when closed. If not lined up correctly, the stud may catch the bottom of the window meaning you will not be able to close the window properly. Can be fitted to side or bottom of window but side operation means a lower opening size and a 11.5mm stud height should be used.

The pivot point should be lightly lubricated twice a year and the surface cleaned with a soft cloth to remove any dust or grime. The product should be periodically adjusted and the fixings tightened to ensure a satisfactory operation.
