Excel 3 Lever Mortice Door Sash Lock with 2 Keys (76mm) (Brass)

Code:
DH002082
Brand:
Free UK Delivery

This 3 lever mortice sash lock for internal doors is suitable for all sprung levers. Reversible 'Rotalatch' latch mechanism for left or right handed configurations Bolt through 3 lever secure sash lock Comes supplied with two interchangeable finishes - brass & nickel ...Read More

Create a wishlist

"Great service from Door Superstore"

Dean Hopwood

Description

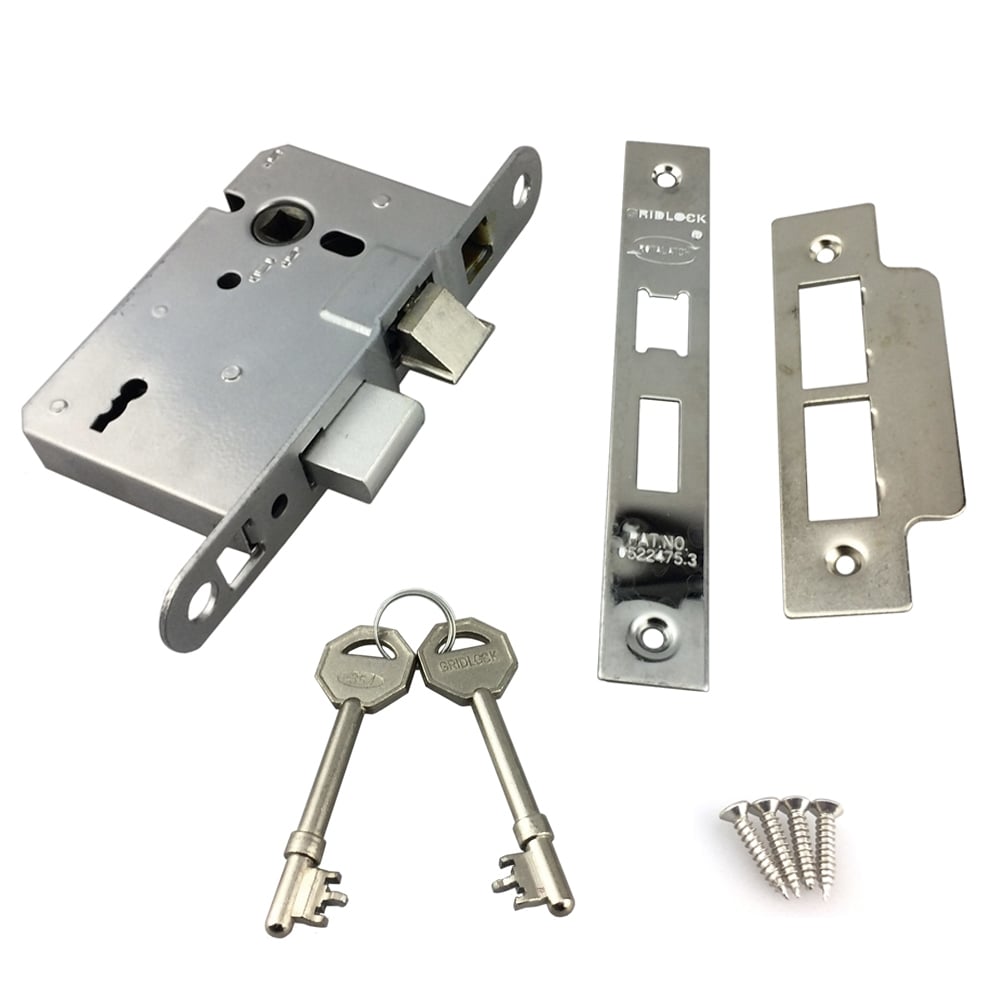

This 3 lever mortice sash lock for internal doors is suitable for all sprung levers.

  • Reversible 'Rotalatch' latch mechanism for left or right handed configurations
  • Bolt through 3 lever secure sash lock
  • Comes supplied with two interchangeable finishes - brass & nickel plated
  • Supplied with two keys
  • Suitable for all sprung levers
  • Comes with full instructions included


Please note:
The locks are keyed to differ

MATERIAL: Steel
TYPE: 3 lever sash lock
STYLE: Mortice
FINISH: Nickel Plated or Electro Brass
FIXINGS: All fixings included
ADDITIONAL FEATURES: Supplied with strike plates and comes with 2 keys

Dimensions

76mm Sash Lock:
Spindle centre to key hole centre:
58mm
Faceplate to back of mechanism: 75mm

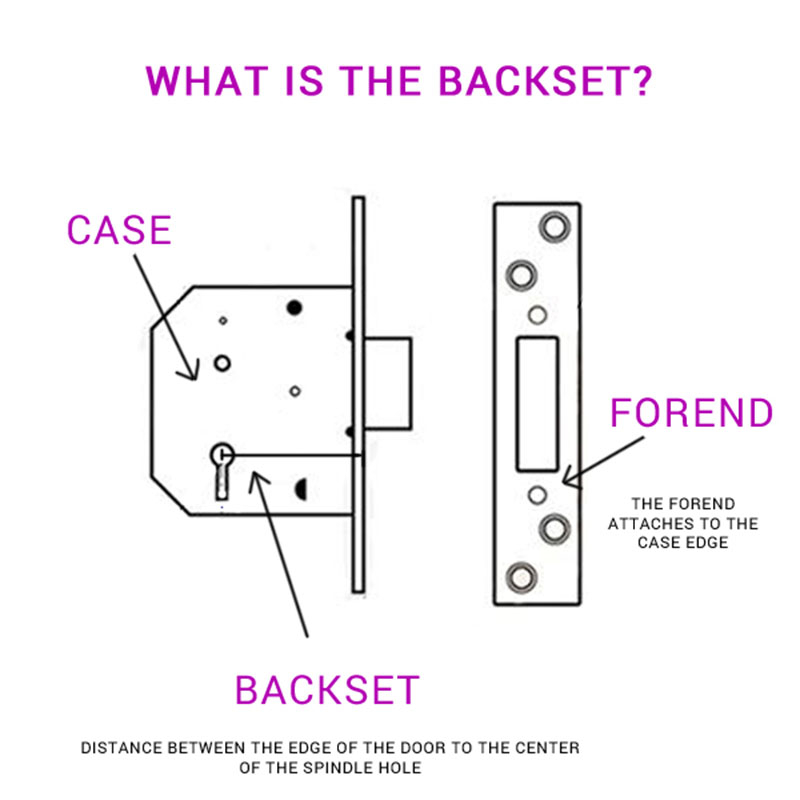

Backset: 53mm
Faceplate height: 154mm
Faceplate width: 22mm
Faceplate hole centre to hole centre: 133mm
Faceplate thickness: 1mm

Dimensions

Size 76mm

Details

Finish Electro Brass
