Excel Pair of Grade 7 Fire Rated Washered Door Hinges (Satin Stainless Steel) 102mm x 67mm

Code:
XL000941
Brand:
Free UK Delivery

One pair of double stainless steel fire rated washered hinges CE marked and BS EN 1935 certified hinges which have achieved a Grade 7 hinge rating Ideal for commercial applications, use on fire doors or heavier standard internal doors Tested and rated for use on... Read More

Create a wishlist

"Great product and great slick serv…"

Jonathan Allden

Description

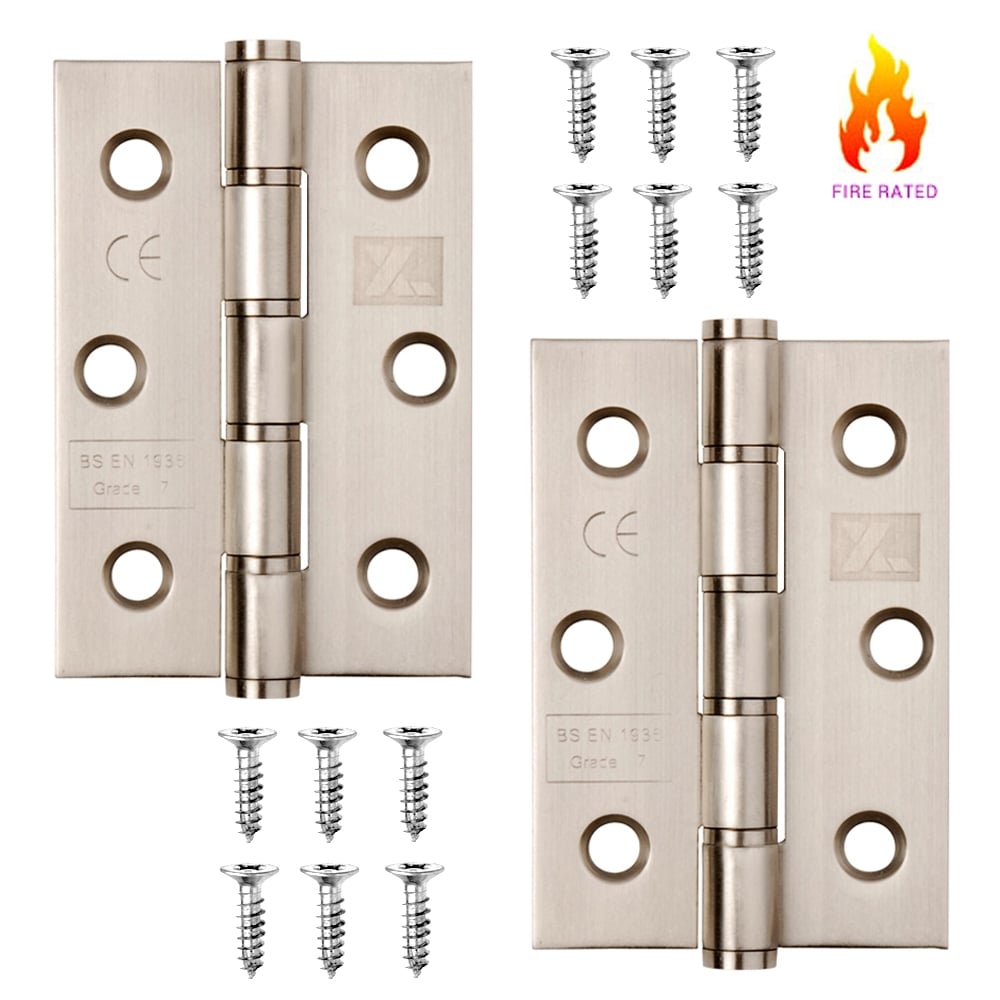

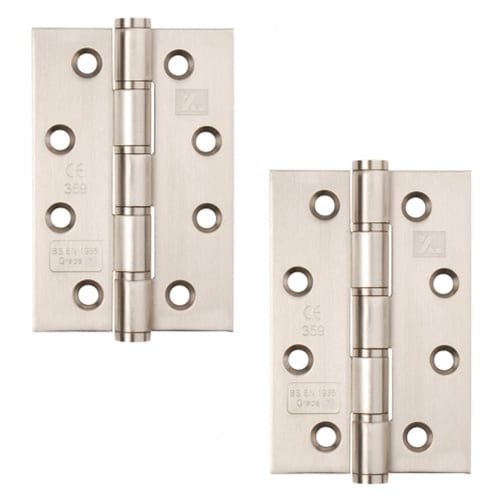

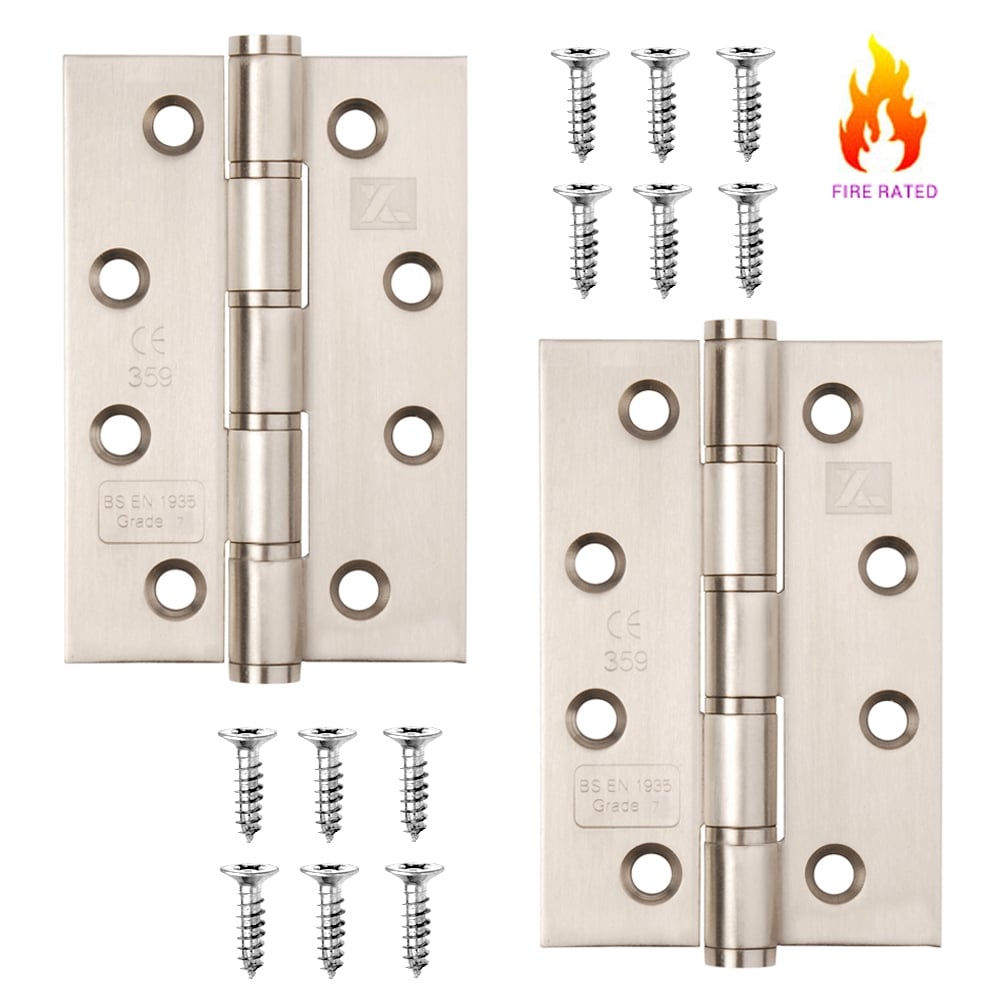

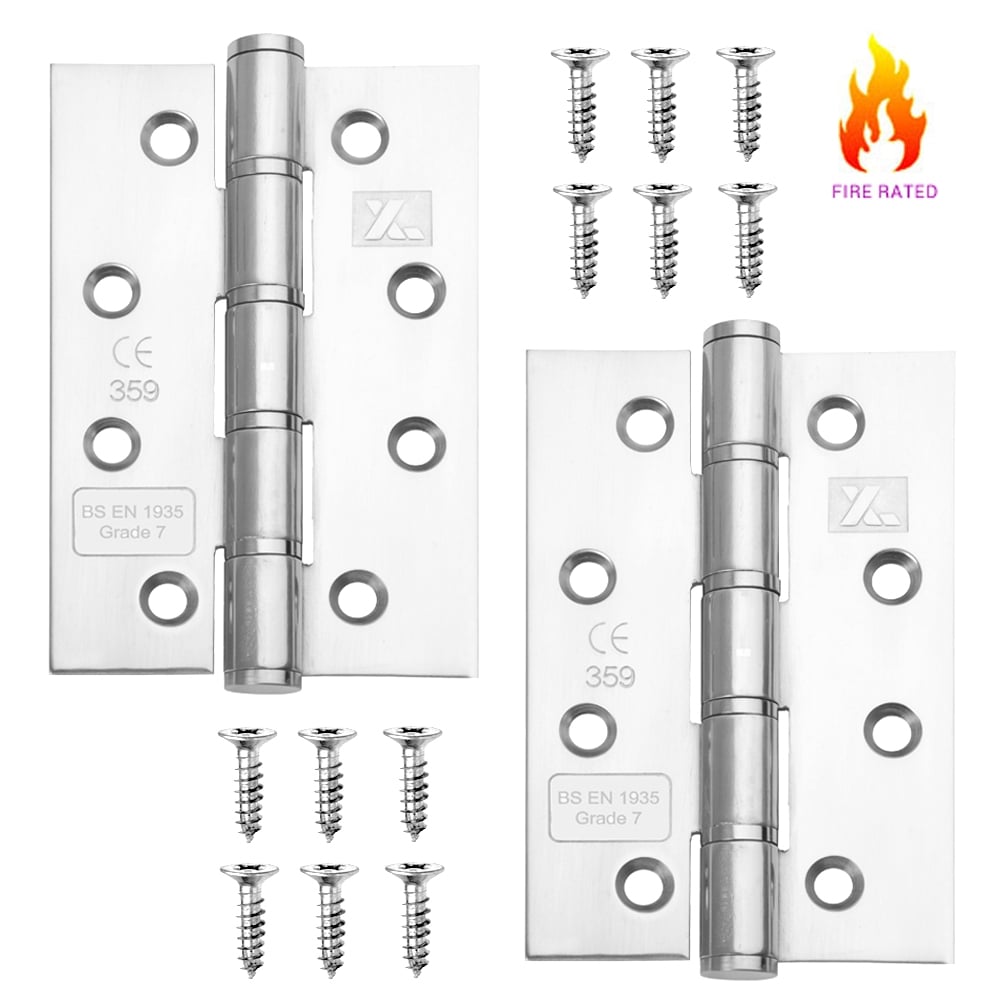

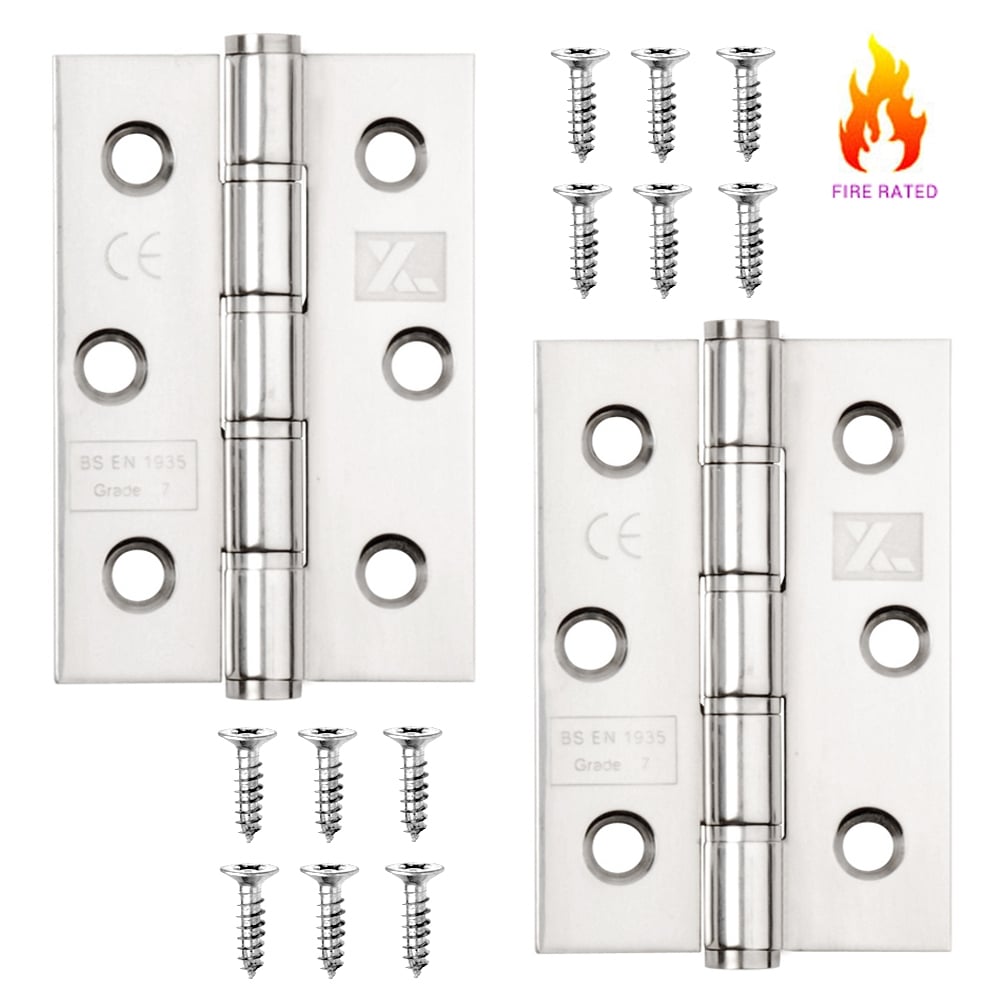

  • One pair of double stainless steel fire rated washered hinges
  • CE marked and BS EN 1935 certified hinges which have achieved a Grade 7 hinge rating
  • Ideal for commercial applications, use on fire doors or heavier standard internal doors
  • Tested and rated for use on 30/60 minute fire doors
  • Suitable for doors up to 40kg (subject to door closer selection and its weight)
  • Medium duty - tested to 200,000 cycles
  • High corrosion resistance in accordance with EN 1670 standards - suitable for use externally
  • Made from high quality stainless steel with a choice of modern finishes
  • Square corners
  • 8g x 1" twin thread hardened Pozi wood screws included
  • We recommend fitting 3 hinges per timber door
  • Available in a range of sizes and leaf thicknesses - 4" x 2", 4" x 3", 4" x 2 1/2"

MATERIAL: Stainless Steel
TYPE: Fire rated internal and external door hinges
STYLE: Washered
FINISH: Satin Stainless Steel finish
FIXINGS: Hardened Pozi fixing wood screws included
HINGE GRADE: 7
FIRE RATING: BS EN 1935 certified. Suitable for use on 30/60 minute fire doors
ADDITIONAL FEATURES:
 Supplied in a pair. CE rated

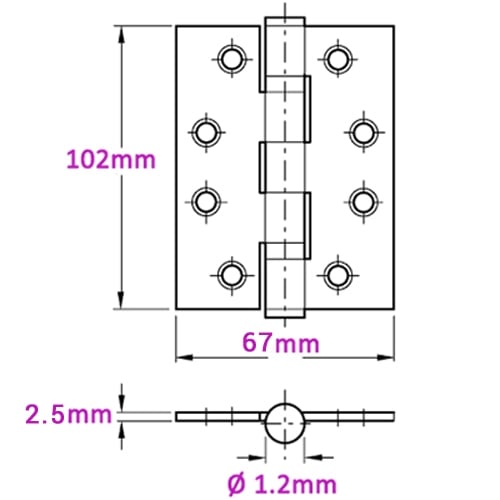

Dimensions

4" x 2.5" (102mm x 67mm)

OVERALL HEIGHT: 113mm
HINGE LEAF HEIGHT: 102mm
OPEN WIDTH: 67mm
HINGE LEAF THICKNESS: 2.5mm

Technical Information

  • Door hinges must be chosen in regards to TOTAL MASS, that is door + weight added by door closer
  • Please note that door closers can increase the load and wear of the hinges
  • You must make sure the specification of the hinges matches that of the other door hardware fitted to ensure the door operates smoothly

MAINTENANCE: Door maintenance, particularly on fire doors, fire exit routes and high traffic routes is an integral part of any well-planned and scheduled maintenance program within a building. Included with this schedule should be a regular minimum annual check on fixing screws, replacing any that are loose, and lubricant ion of the hinges using a fine machine oil such as '3 in 1' or similar ensuring that any floor finishes are protected, and any excess oil is wiped off on completion.

Dimensions

Size 4" x 2.5" (102mm x 67mm)

Details

Finish Satin Stainless Steel
