Home Door Furniture Letter Boxes Fire Essentials Intumescent Letter Plate Fire Rated | Size: 306mm | Finish: SAA

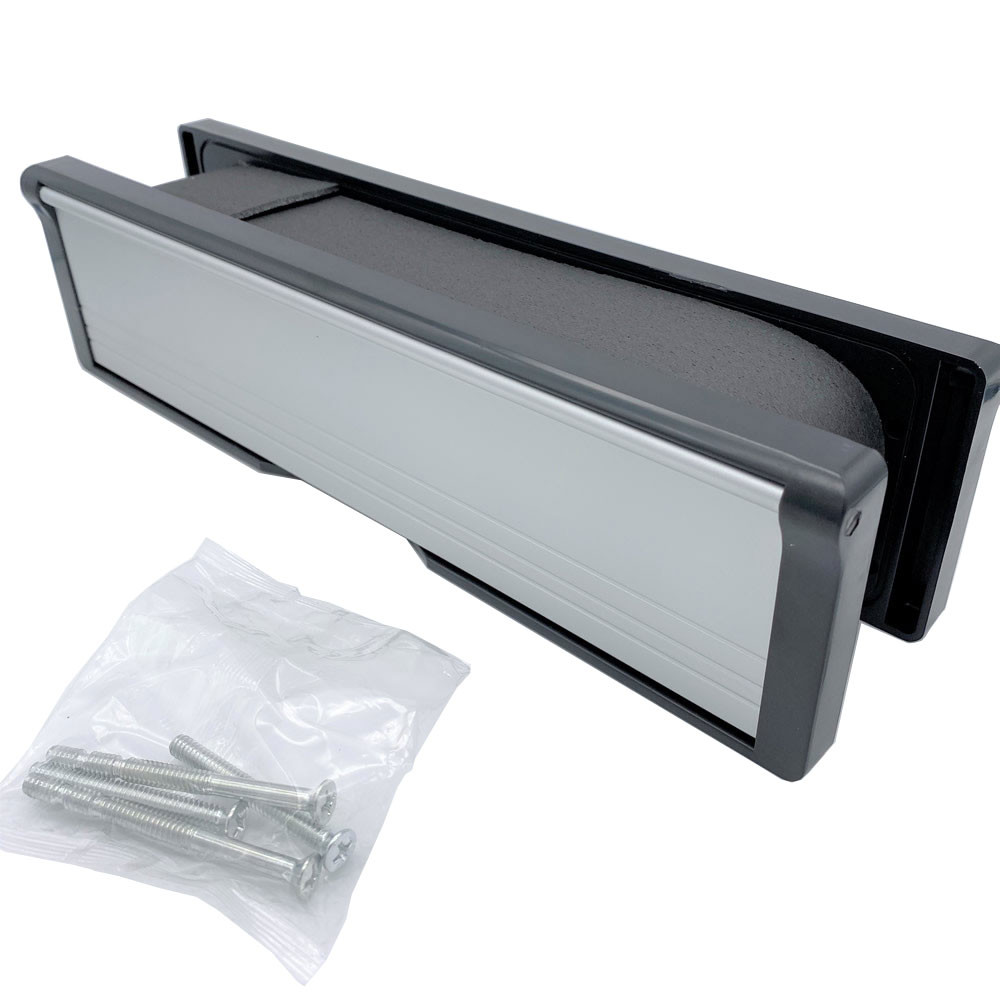

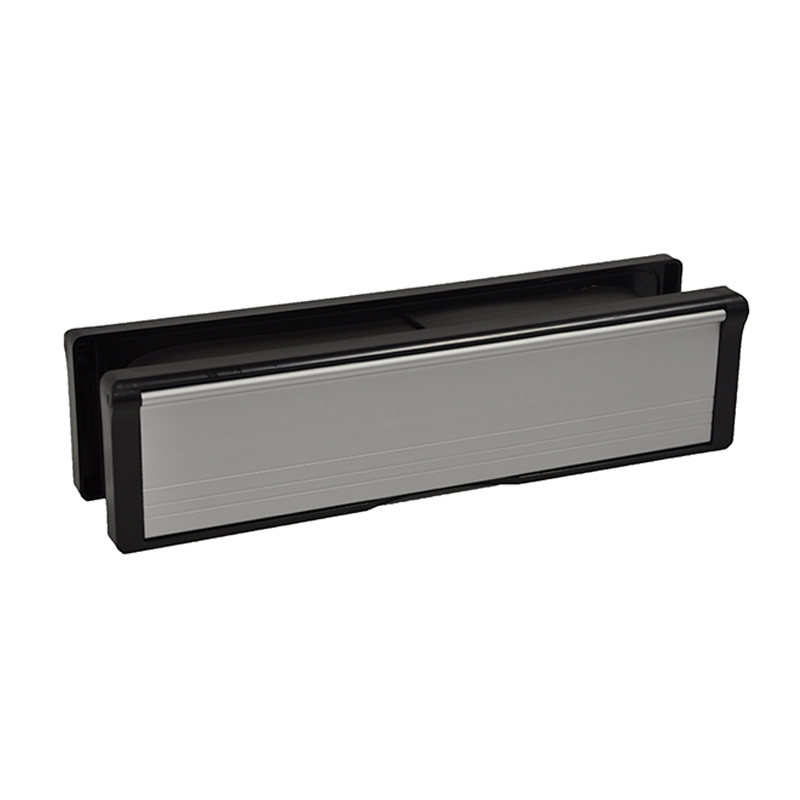

Fire Essentials Intumescent Letter Plate Fire Rated | Size: 306mm | Finish: SAA

Code:
LB307
Brand:
Fire Essentials

In the event of fire the intumescent liner expands rapidly and seals off the letterbox opening, preventing the spread of fire and smoke whilst maintaining the integrity of the fire door assembly. Letterbox flaps open to 180 degree Adjustable telescopic sleeve set to suit 4... Read More

View full product details
View questions about this product
£23.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 2-3 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Monday, Dec 2nd - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Thank you Door superstore"

Paul
Description Specification Downloads Q&A

Description

In the event of fire the intumescent liner expands rapidly and seals off the letterbox opening, preventing the spread of fire and smoke whilst maintaining the integrity of the fire door assembly.

  • Letterbox flaps open to 180 degree
  • Adjustable telescopic sleeve set to suit 40 - 80mm door thickness
  • Fitted with brush pile draught excluders
  • Integral sound dampening bumpers
  • Wide range of letter flap finishes - polished gold, SAA (satin anodised aluminium) or polished silver
  • Ergonomic curved edge design
  • Fully sealed backplate

Fire Rating & Testing

  • Fire Tested to BS 476 part 22: 1987, 30 minute rated
  • Smoke tested to BS476 Part 31/1: 1983
  • Acoustic Tested to BS EN ISO 140-3:1995 Achieving 32dB Rw
  • Security tested to BS EN 13724 Clause 6.6.5 (Compliant within scope of PAS 23/24)


Dimensions

10” 272mm

Overall length: 272mm
Overall height: 70mm
Aperture Width: 221mm
Aperture Height: 37.5mm

12” 306mm

Overall length: 306mm
Overall height: 70mm
Aperture Width: 254.5mm
Aperture Height: 37.5mm

Installation

1. Measure the external dimensions of the central telescopic section (including the fitted intumescent liner) to ascertain the aperture cut-out.

2. Carefully cut an aperture in the fire door leaf up to 1050mm from the bottom of the door. Please ensure that the aperture is a tight fit to allow the fixing of wood screws into the corner of the face plates.

3. The face plate fitted with the integral draught excluders should be located to the internal face of the door.

4. Locate the letter box into the cut aperture and secure using 4no. steel wood screws into each face plate.

5. To maintain the fire proof integrity of the fire door ensure any gaps between the letter box and the door aperture are sealed using our intumescent sealant.

Dimensions

Size 306mm

Details

Finish SAA Type Door Letterbox Material ABS
Metal
