Hafele Pie Cut Corner 90 Degree Concealed Cabinet Hinges - Pre-Mounted Euro Screw (3mm Height)

Code:
HF/31220755C553
Brand:
Free UK Delivery

MATERIAL: SteelTYPE:Concealed cabinet corner hingeSTYLE:'Pie cut' with integrated adjustmentFINISH:Nickel PlatedFIXINGS:3.5 x 15mm countersunk Hospa screws and pre-mounted euro screws or 3mm diameter screws included with mounting plates Description Pie cut concealed hinges... Read More

Create a wishlist

"Ordered a door and frame - all good"

Colin Hughes

Description


MATERIAL: Steel

TYPE:Concealed cabinet corner hinge

STYLE:'Pie cut' with integrated adjustment

FINISH:Nickel Plated

FIXINGS:3.5 x 15mm countersunk Hospa screws and pre-mounted euro screws or 3mm diameter screws included with mounting plates

Description

  • Pie cut concealed hinges are designed for connecting two corner cabinet doors

  • 90 degree opening angle

  • Click on fitting

  • Hinge on plate mounting system - choose your required mounting plate type from the drop down selection menu

  • Standard drilling for hinge and mounting plate

  • Hinge integrated adjustment

  • Screw fixing cup with Smuso click on arm

  • Supplied with nickel plated Hafele cover cap to hide fixing points on the arm

  • Opens with handle (not included)

  • Can be used with optional soft close mechanism (not included)

  • Select '0mm' in the drop down box if you have an 18mm thick door

  • Select '3mm' in the drop down box if you have an 15mm thick door

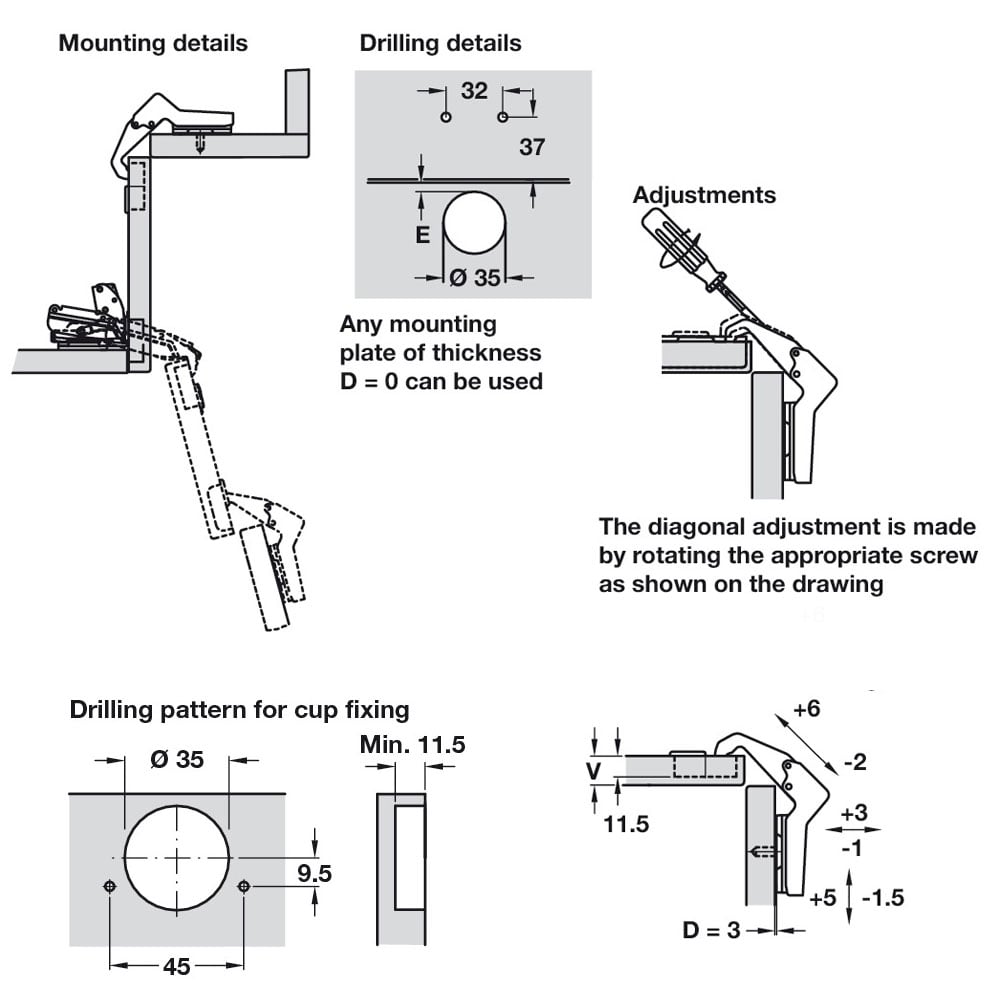

PLEASE NOTE: Picture of this product shows the item with a 0mm mounting plate, please select this option to receive the item exact to the picture

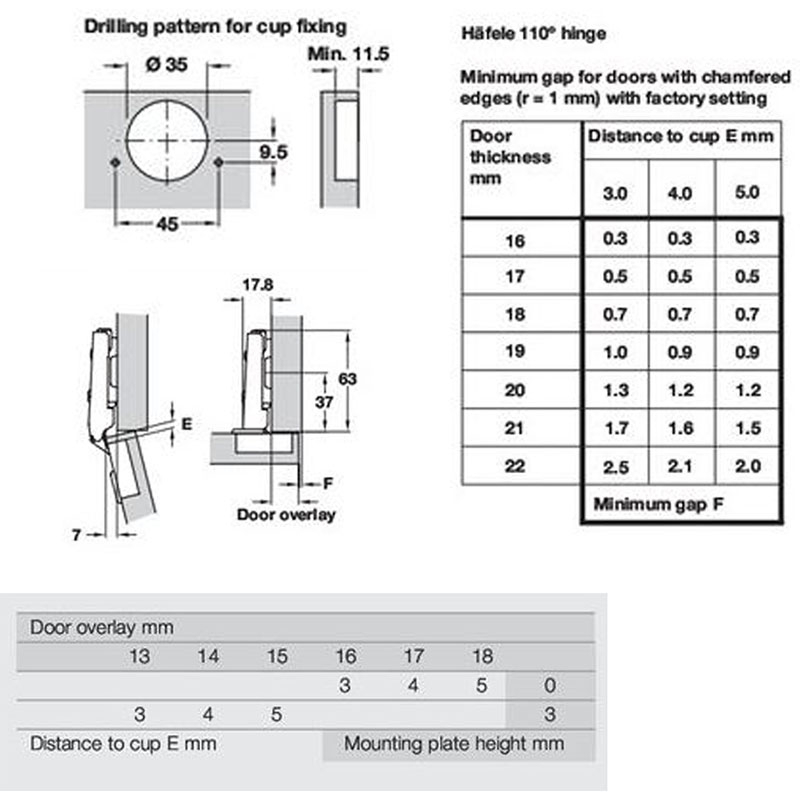

Dimensions


DRILLING DIAMETER FOR HINGE CUP: 35mm

DRILLING DEPTH:
11.5mm

OVERALL LENGTH (INC ARM AND CUP):
 106mm

ARM WIDTH: 16mm

ARM OVERALL PROJECTION: 50mm

FIXING CUP HEIGHT:
 57mm

FIXING CUP WIDTH: 36mm

FIXING CUP DEPTH: 13mm

FIXING CUP HOLE CENTRE TO CENTRE: 45mm

Details

Mounting Type Pre-Mounted Euro Screw (3mm Height)

Questions & Answers

There are currently no questions for this product.
