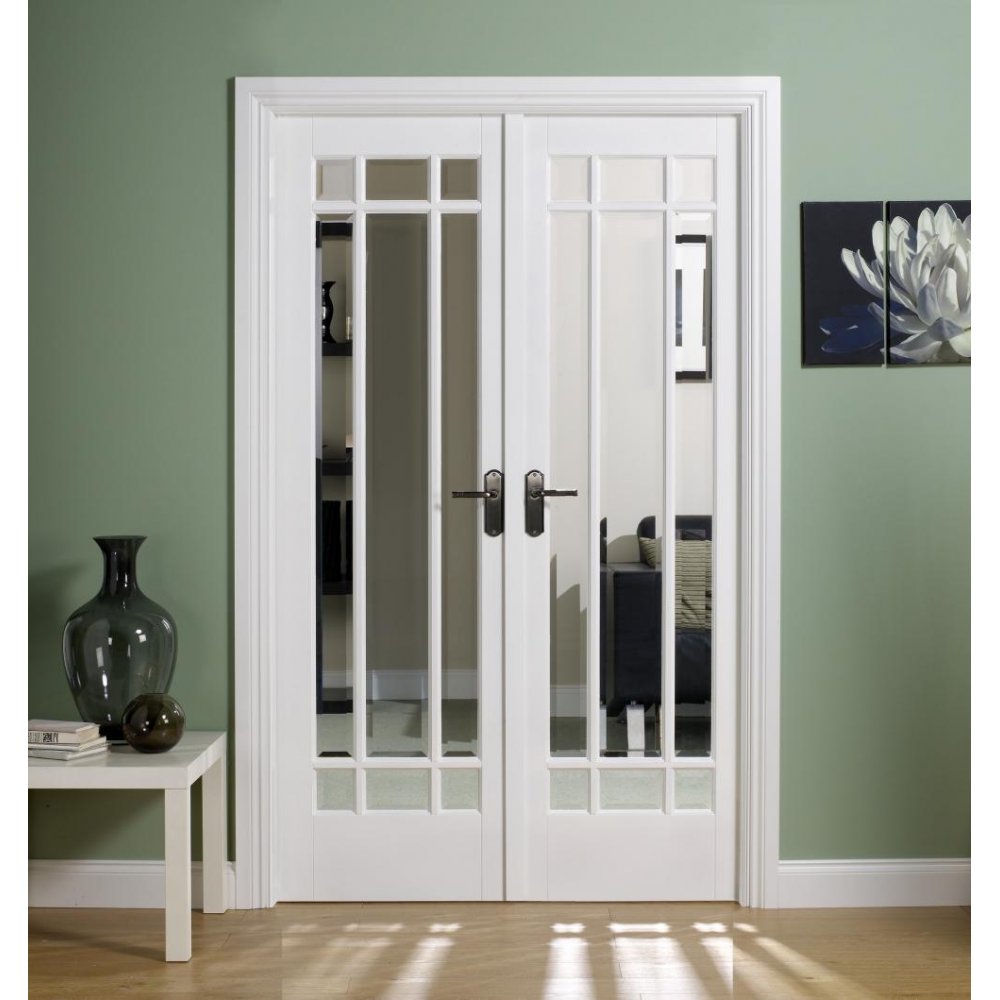

The Manhattan room divider is supplied with a white primed finish and clear bevelled, marginal bar detail glazing. These doors create a contemporary appearance making them suited to complement most interior designs and decor schemes. These doors are supplied pre-glazed with... Read More
SUPER Rewards Earn points and build more across our SUPERSTORES!
Find out moreThe Manhattan room divider is supplied with a white primed finish and clear bevelled, marginal bar detail glazing. These doors create a contemporary appearance making them suited to complement most interior designs and decor schemes.
MATERIAL:Composite engineered timber components
CORE CONSTRUCTION: Engineered
JOINT CONSTRUCTION: Dowelled
DOOR THICKNESS: 35mm
FINISH: White Primed
GLAZING:Clear bevelled glazing
Manhattan W4
External Dimensions: 2031mm high x 1246mm wide
Centre Doors 9L Square Heads: 35 x 579 x 1981 (2 pieces)
Frame Set Lining Head: 35 x 133 x 1246 (1 piece)
Frame Set Lining Jamb: 35 x 133 x 2006 (1 piece)
Frame Set Lining Jamb: 35 x 133 x 2006 (1 piece)
Door Stop: 13 x 45 x 1176 (1 piece)
Door Stop: 13 x 45 x 1996 (2 pieces)
"T" Stop: 30 x 45 x 1981 (1 piece)
Manhattan W6
External Dimensions: 2031mm high x 1904mm wide
Centre Doors 9L Square Head: 35 x 579 x 1981 (2 pieces)
Demi Panel 6L Square Head: 35 x 292 x 1981 (2 pieces)
Frame Set Lining Head: 35 x 133 x 1904 (1 piece)
Frame Set Lining Jamb: 35 x 133 x 2006 (1 piece)
Frame Set Lining Jamb: 35 x 133 x 2006 (1 piece)
Centre Mullion: 35 x 133 x 2006 (1 piece)
Centre Mullion:35 x 133 x 2006 (1 piece)
Door Stop: 13 x 45 x 1176 (1 piece)
Door Stop: 13 x 45 x 1996 (2 pieces)
Demi Panel Bead: 13 x 45 x 294 (8 pieces)
Demi Panel Bead: 13 x 45 x 1974 (8 pieces)
"T" Stop: 30 x 45 x 1981 (1 piece)
Bottom Rail: 22 x 133 x 294 (1 piece)
Bottom Rail: 22 x 133 x 294 (1 piece)
Manhattan W8
External Dimensions: 2031mm high x 2478mm wide
Centre Doors 9L Square Head:35 x 579 x 1981 (2 pieces)
Side Panel 9L Square Head: 35 x 579 x 1981 (2 pieces)
Frame Set Lining Head: 35 x 133 x 2478 (1 piece)
Frame Set Lining Jamb: 35 x 133 x 2006 (1 piece)
Frame Set Lining Jamb: 35 x 133 x 2006 (1 piece)
Centre Mullion: 35 x 133 x 2006 (1 piece)
Centre Mullion: 35 x 133 x 2006 (1 piece)
Door Stop: 13 x 45 x 1176 (1 piece)
Door Stop: 13 x 45 x 1996 (2 pieces)
Side Light Bead: 13 x 45 x 581 (8 pieces)
Side Light Bead: 13 x 45 x 1974 (8 pieces)
"T" Stop: 30 x 45 x 1981 (1 piece)
Bottom Rail: 22 x 133 x 581 (1 piece)
Bottom Rail: 22 x 133 x 581 (1 piece)
