JB Kind Internal Single Pocket Door System (doors sold separately)

A pocket door system that enables your doors to slide conveniently into a wall cavity, save space, whilst looking incredibly stylish!

If a double pocket door is required, you will need to purchase two single pocket door systems, a double leaf conversion kit and accessory kit.

Easy to install pocket door kit with a rigid frame, our pocket door systems are supplied pre-assembled so that they can be fitted in half the time of other brands.

Available for both single and double door situations in a selection of sizes, almost all JB Kind internal doors are suitable for use as sliding pocket doors (pocket doors are only suitable for 35mm thick doors with a height of 1981mm). You can also choose from a selection of pocket sliding door accessories too!

• Easy to install rigid frame supplied pre-assembled
• Designed for stud and plasterboard
• System made from 0.5mm galvanised steel
• Door can by fitted after all installation and decoration has been completed
• Easy to install rigid frame, supplied pre-assembled
• Fitted in half the time of other brands
• Designed for stud and plasterboard
• The internal pocket cavity is protected by a cover during installation
• Door is fitted after all installation and decoration has been completed, avoiding any potential damage to your door.
• Door choice can be changed in the future without structural alteration to the wall.
• Gives a finished wall thickness of 125mm
• Suits door thicknesses 35mm
• Maximum door weight 80Kg
• Pocket doors are only suitable for 35mm thick doors with a height of 1981mm
• Compatible sliding door hardware available
• Available in single and double format



JB Kind's pocket door systems are supplied pre-assembled and are available for both single and double door situations.

Please note: an accessory kit is required to complete installation and must be purchased alongside the pocket system.

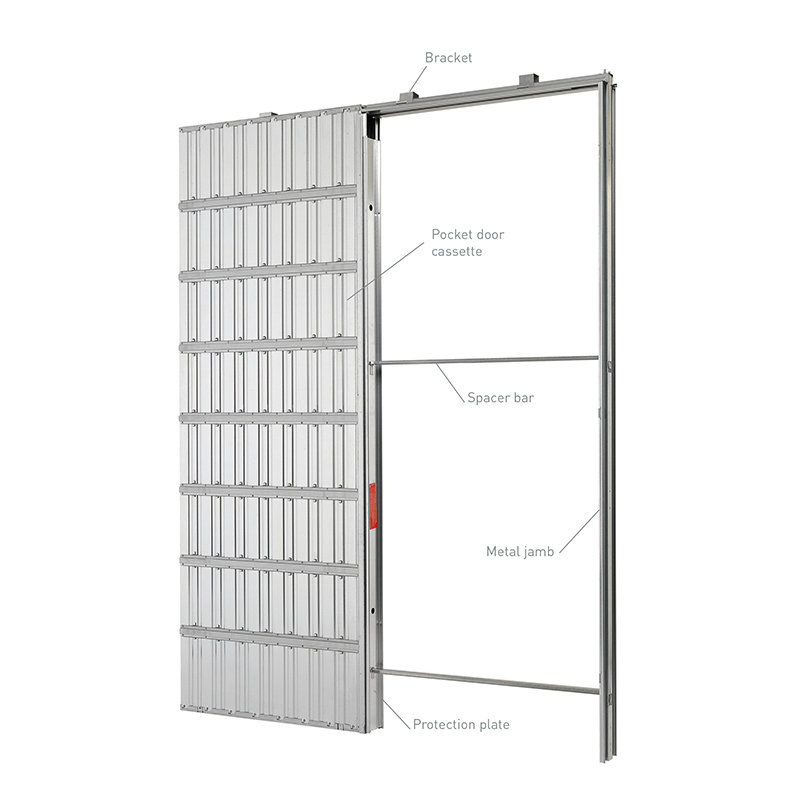

• Ready assembled for easy and accurate installation.
• The cassette structure is made from 0.5mm galvanised steel.
• The cassette sides are formed from single pieces of pressed steel which is corrugated for complete stability.
• Transverse ribs fixed to the corrugations further re-inforce the structure and allow fixing of plasterboard direct to the cassette.
• Twin spacer bars are supplied that are fixed between the cassette and jamb during installation to ensure the structure remains square

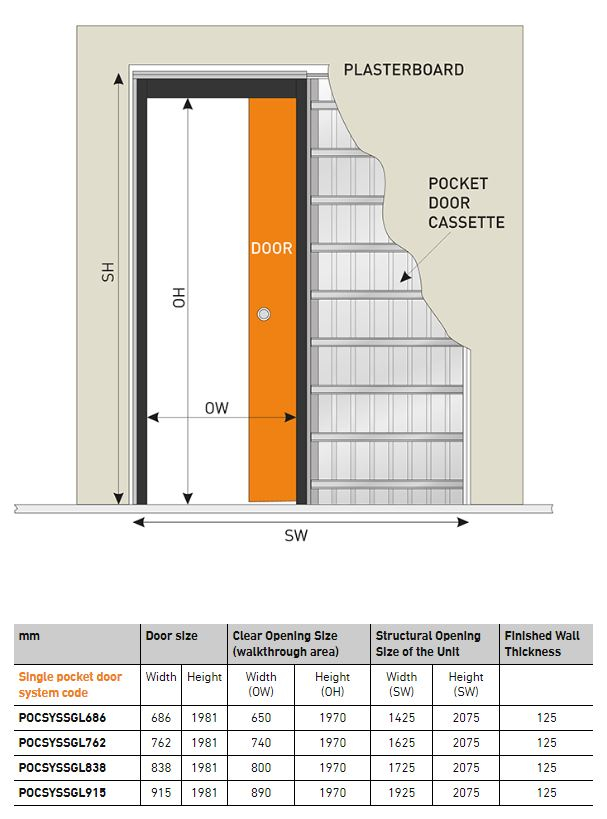

Single pocket door sizes:

Individual door size: 686mm x 1981
Clear opening size (walkthrough area): 650mm x 1970mm
Structural opening size of the unit: 1425mm x 2075mm
Finished Wall Thickness: 125mm

Individual door size: 762mm x 1981
Clear opening size (walkthrough area): 740mm x 1970mm
Structural opening size of the unit: 1625mm x 2075mm
Finished Wall Thickness: 125mm

Individual door size: 838mm x 1981
Clear opening size (walkthrough area): 800mm x 1970mm
Structural opening size of the unit: 1725mm x 2075mm
Finished Wall Thickness: 125mm

Individual door size: 915mm x 1981
Clear opening size (walkthrough area): 890mm x 1970mm
Structural opening size of the unit: 1925mm x 2075mm
Finished Wall Thickness: 125mm

Double pocket door sizes:

Individual door size: 686mm x 1981
Clear opening size (walkthrough area): 1300mm x 1970mm
Structural opening size of the unit: 2742mm x 2075mm
Finished Wall Thickness: 125mm

Individual door size: 762mm x 1981
Clear opening size (walkthrough area): 1500mm x 1970mm
Structural opening size of the unit: 3142mm x 2075mm
Finished Wall Thickness: 125mm

Individual door size: 838mm x 1981
Clear opening size (walkthrough area): 1600mm x 1970mm
Structural opening size of the unit: 3342mm x 2075mm
Finished Wall Thickness: 125mm

Individual door size: 915mm x 1981
Clear opening size (walkthrough area): 1800mm x 1970mm
Structural opening size of the unit: 3742mm x 2075mm
Finished Wall Thickness: 125mm
