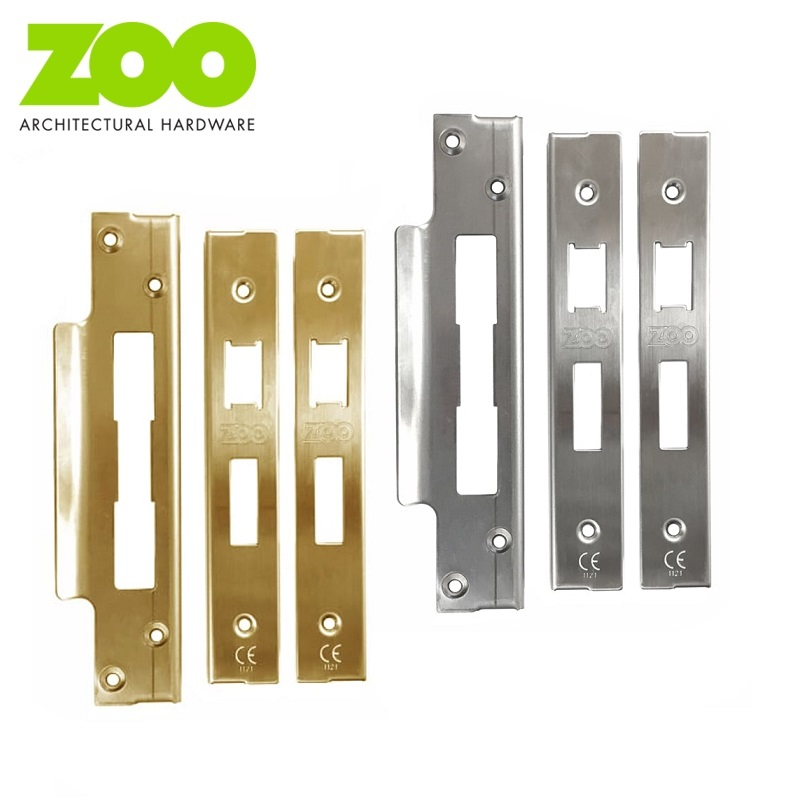

Mortice Door Sash Lock Rebate Kit

Code:
Z/ZUKR01

This item is out of stock and not available to purchase.

MATERIAL: Stainless SteelTYPE: Sash lock rebate kitFINISH: Electro brass and satin nickel finishes availableFIXINGS: Required wood fixing screws includedADDITIONAL INFORMATION:Left or Right Handed Configuration Description   A rebate kit creates a surround for the ...Read More

Create a wishlist

"Good old fashion service"

Jeremy Johnson

Description


MATERIAL: Stainless Steel

TYPE: Sash lock rebate kit

FINISH: Electro brass and satin nickel finishes available

FIXINGS: Required wood fixing screws included

ADDITIONAL INFORMATION:Left or Right Handed Configuration



Description



  • A rebate kit creates a surround for the mortice lock which evens out the rebate cut into the door edges and allows for the door to close and latch properly

  • For use on french doors / double doors that have a rebated overlap in the middle

  • Can be used in a left or right handed configuration (comes with both face plates)

  • Compatible for use with ZUK UK sash locks - Click here to view compatible ZUK UK sash locks

  • Available in electro brass and satin nickel finishes

  • Door mass up to 200kg

  • BS EN 12209: 2003 Grade 2

  • CE marked

Frequently Asked Questions



Q: What are 'rebated doors'?

A:Rebated doors have a deep groove cut into the door edge in order to tightly fit them together for use as a door pair or double door.

Q:What does 'CE marked' mean?

A:This standard indicates to governmental officials that the product may be legally placed on the market in their country.



Dimensions


Please note that all measurements are subject to a tolerance of +/- 3mm


REBATE FACE PLATE LENGTH:170mm

REBATE FACE PLATE WIDTH:25mm

REBATE FACE PLATE HOLE TO HOLE FIXING POINTS:125mm

REBATE STRIKE PLATE LENGTH:180mm

REBATE STRIKE PLATE WIDTH:30mm

REBATE STRIKE PLATE WIDTH (WIDTH TOUNGE):45mm

REBATE STRIKE PLATE HOLE TO HOLE FIXING POINTS:125mm
