Rebated Mortice Tubular Door Latch

Code:
AC/TLRK

This item is out of stock and not available to purchase.

MATERIAL:MetalTYPE:Tubular latch and rebate kit for door pairsSTYLE: Mortice fitting bolt through latchFINISH: Satin Zinc or Polished BrassFIXINGS:All required fixings includedADDITIONAL FEATURES:Strike plate and dust socket included with latch   Description   ... Read More

Create a wishlist

"Fast delivery would order again wi…"

Christopher Ware

Description


MATERIAL:Metal

TYPE:Tubular latch and rebate kit for door pairs

STYLE: Mortice fitting bolt through latch

FINISH: Satin Zinc or Polished Brass

FIXINGS:All required fixings included

ADDITIONAL FEATURES:Strike plate and dust socket included with latch



Description



  • An essential door accessory that allows a mortice latch to work on a pair of rebated double doors or a door pair

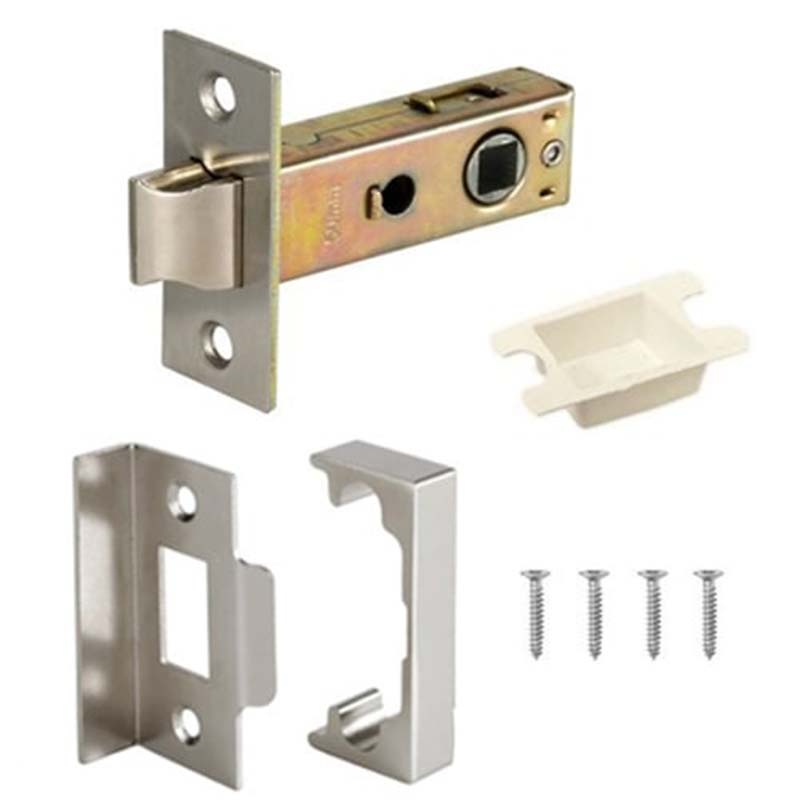

  • This latch set includes the rebate kit plus compatible mortice door tubular latch

  • A rebate kit creates a surround for the mortice latch which evens out the rebate cut into the door edges and allows for the door to close and latch properly

  • Latch has soft spring action and is suitable for use with 8mm diameter spindle

  • Designed for all lever door furniture requiring bolt through fixings

  • We recommend 3" latches for use with door knobs

  • Choose from between two finishes (Satin Zinc or Brass) and two different sizes (63mm or 75mm)

  • IMPORTANT- this rebate kit is ONLY compatible with the tubular latch included





Dimensions


All dimensions are subject to a measurement tolerance of +/- 5mm

Please note:

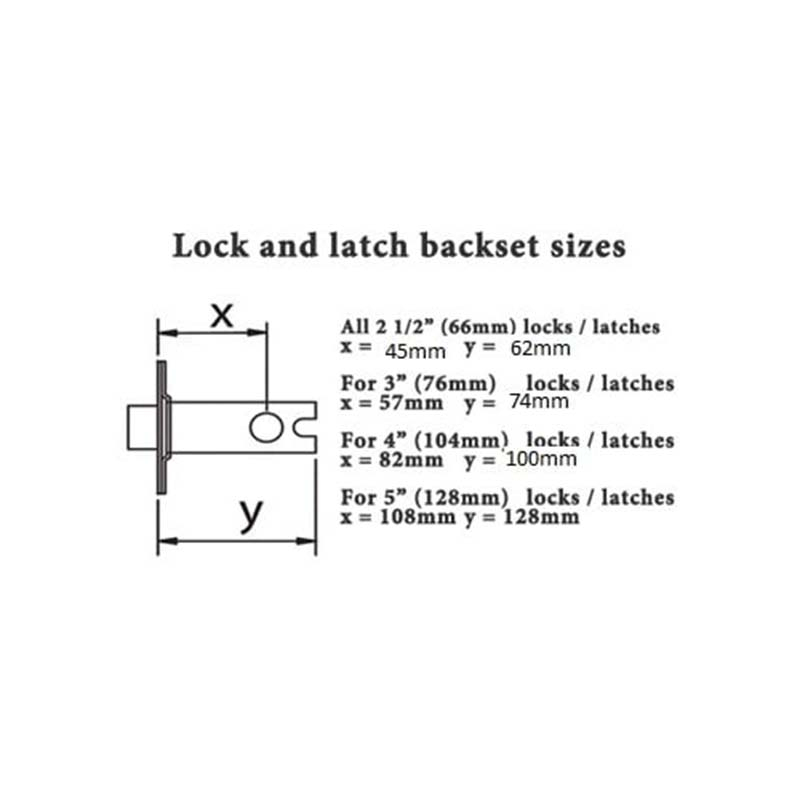

The case measurement refers to the overall length of the latch while thebacksetrefers to the distancebetween the end of the face plate and the centre of the spindle hole. A diagram displaying this is below.


2 1/2" (64mm) LATCH

LATCH LENGTH:63mm

LATCH WIDTH: 20mm

SPINDLE HOLE DIAMETER:8mm

BACKSET MEASUREMENT:
43mm

BOLT PROJECTION: 11mm

STRIKE PLATE HEIGHT:68mm

STRIKE PLATE WIDTH (with striker):38mm

STRIKE PLATE WIDTH (without striker):26mm

APERTURE HEIGHT:28mm

APERTURE WIDTH18mm

FACEPLATE HEIGHT: 58mm

FACEPLATE WIDTH:25mm





3" (76mm) LATCH

LATCH LENGTH:74mm

LATCH WIDTH:20mm

SPINDLE HOLE DIAMETER:8mm

BACKSET MEASUREMENT:
57mm

BOLT PROJECTION:11mm

STRIKE PLATE HEIGHT:68mm

STRIKE PLATE WIDTH (with striker):38mm

STRIKE PLATE WIDTH (without striker):26mm

APERTURE HEIGHT:28mm

APERTURE WIDTH18mm

FACEPLATE HEIGHT: 58mm

FACEPLATE WIDTH:25mm





REBATE KIT


HEIGHT:
57mm

WIDTH:
27mm

DEPTH:
14mm



What size latch will I need?


You will need to remove your old latch and measure it to obtain your measurement requirements. Please look at the diagram below which explains how to distinguish which size latch will be suitable for your door.




Dimensions

Size 2.5" (64mm)
3" (76mm)

Details

Finish Polished Brass
Satin Zinc
