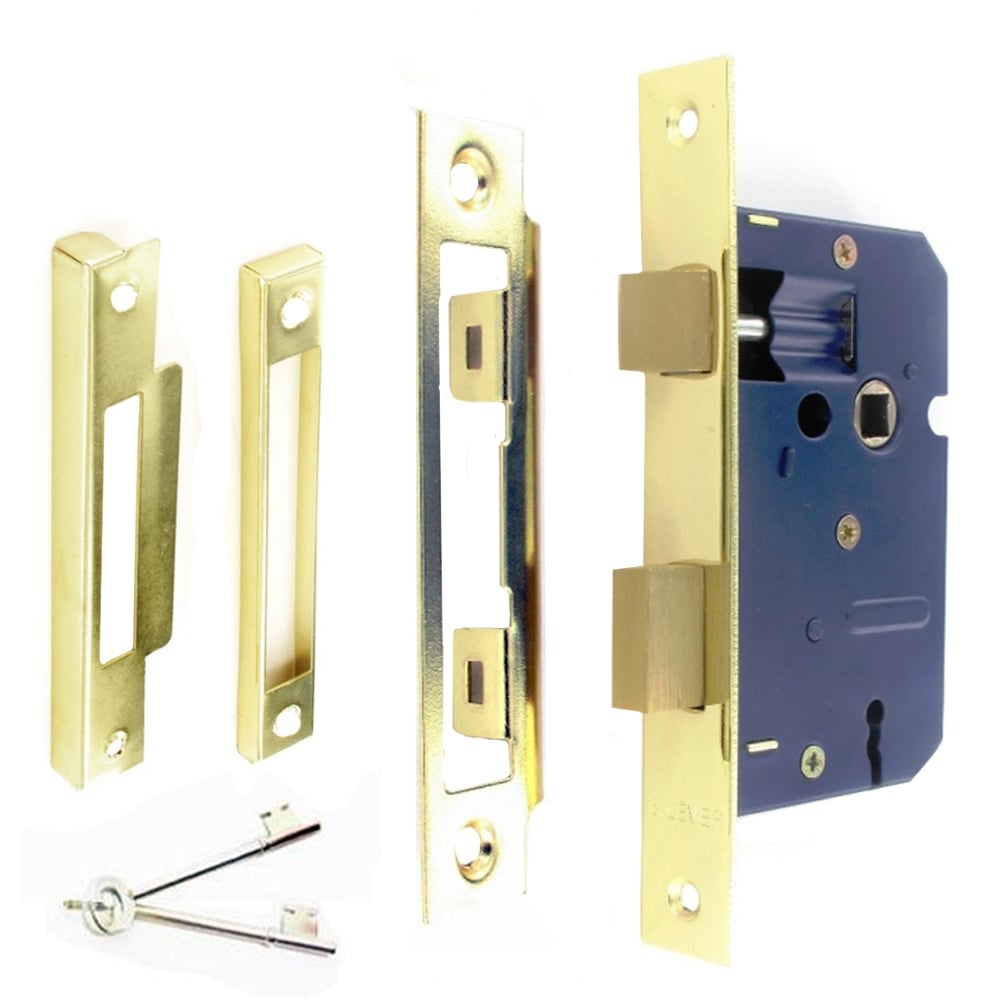

Securit 3 Lever Mortice Door Sash Lock and Rebate Kit (Brass) (63mm)

Code:
MP/B1831REBATE
Free UK Delivery

MATERIAL: SteelTYPE: 3 lever sash lock and rebate kitSTYLE: MorticeFINISH: Choice of Nickel or Brass finish platesFIXINGS: Wood screw fixings includedADDITIONAL FEATURES: Bundled with a set of 2 keys Description An essential door accessory that allow... Read More

Create a wishlist

"Ordered the gate and it arrived in…"

Michael oldfield

Description


MATERIAL: Steel

TYPE: 3 lever sash lock and rebate kit

STYLE: Mortice

FINISH: Choice of Nickel or Brass finish plates

FIXINGS: Wood screw fixings included

ADDITIONAL FEATURES: Bundled with a set of 2 keys



Description

  • An essential door accessory that allows a lock to be fitted on a pair of rebated double doors or a door pair

  • This lock set includes the rebate kit plus compatible mortice door sash lock

  • A rebate kit creates a surround for the mortice lock which evens out the rebate cut into the door edges and allows for the door to close and latch properly

  • Sash lock has 3 levers for added security

  • Rebate kit is made of two items - face plate and strike plate

  • Choose from between two finishes (Brass or Nickel plates) and two different lock case sizes (63mm or 75mm)

  • Set of 2 keys included with the set

  • IMPORTANT - this rebate kit is ONLY compatible with the sash lock included


WHAT ARE REBATED DOORS?

Rebated doors have a deep groove cut into the door edge in order to tightly fit them together for use as a door pair or double door.

Dimensions


Please note that all dimensions are subject to a measurement tolerance of +/- 5mm


63mm

CASE HEIGHT: 106mm

CASE WIDTH: 63mm

CASE DEPTH/THICKNESS:
13mm

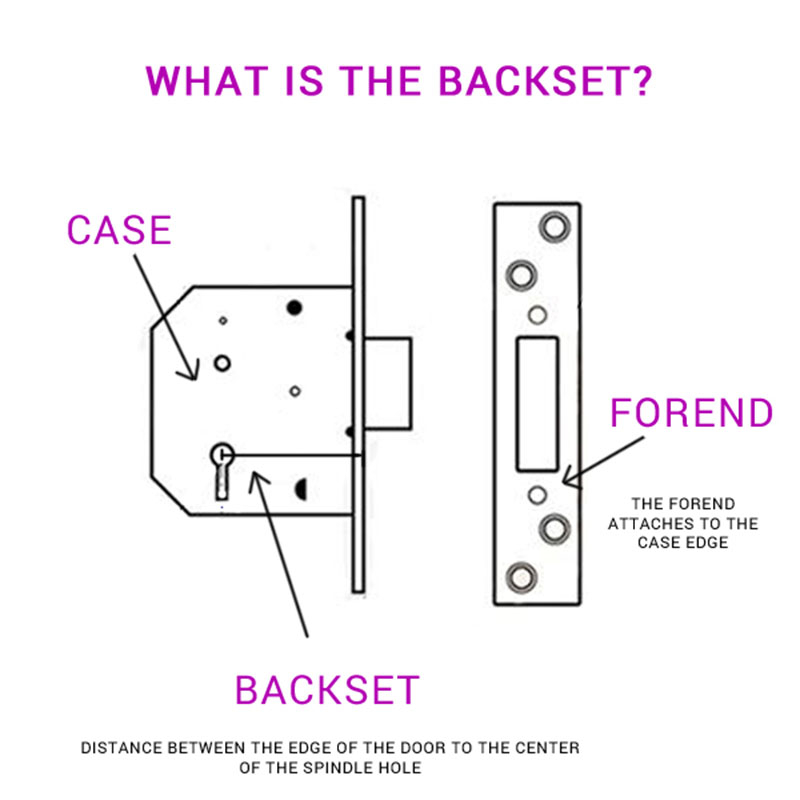

BACKSET DISTANCE:
 45mm

FOR END HEIGHT:
 155mm

FOR END WIDTH:
22mm

STRIKE PLATE HEIGHT: 156mm

STRIKE PLATE WIDTH (WITH TONGUE): 36mm

LENGTH OF KEY: 65mm

SPINDLE HOLE DIAMETER: 8mm


75mm


CASE HEIGHT: 106mm

CASE WIDTH: 75mm

CASE DEPTH/THICKNESS:
13mm

BACKSET DISTANCE:
 56mm

FOR END HEIGHT:
 156mm

FOR END WIDTH:
22mm

STRIKE PLATE HEIGHT: 125mm

STRIKE PLATE WIDTH (WITH TONGUE): 36mm

LENGTH OF KEY:
65mm

SPINDLE HOLE DIAMETER: 8mm


REBATE KIT


HEIGHT: 162mm

WIDTH:
23mm

DEPTH:
13mm



Dimensions

Size 63mm

Details

Finish Brass Plated
