Securit Black Garage Door Slide Bolt 300mm (Monkey Tail)

Code:
MP/B5184
Free UK Delivery

MATERIAL: Steel frame with a zinc boltTYPE: Garage door boltSTYLE: Bow handle, monkey tail and drop bolt styles availableFINISH: Black with silver zinc boltFIXINGS: All screw fixings included Description Secure garage door with choice of long bolt arm styles -... Read More

Create a wishlist

"Good service & value."

Kevin, Hove

Description


MATERIAL: Steel frame with a zinc bolt

TYPE:
 Garage door bolt

STYLE: Bow handle, monkey tail and drop bolt styles available

FINISH: Black with silver zinc bolt

FIXINGS: All screw fixings included

Description


  • Secure garage door with choice of long bolt arm styles - ideal for easy reach and accessibility

  • Made from strong steel for a ultra secure locking solution with zinc (silver) bolt

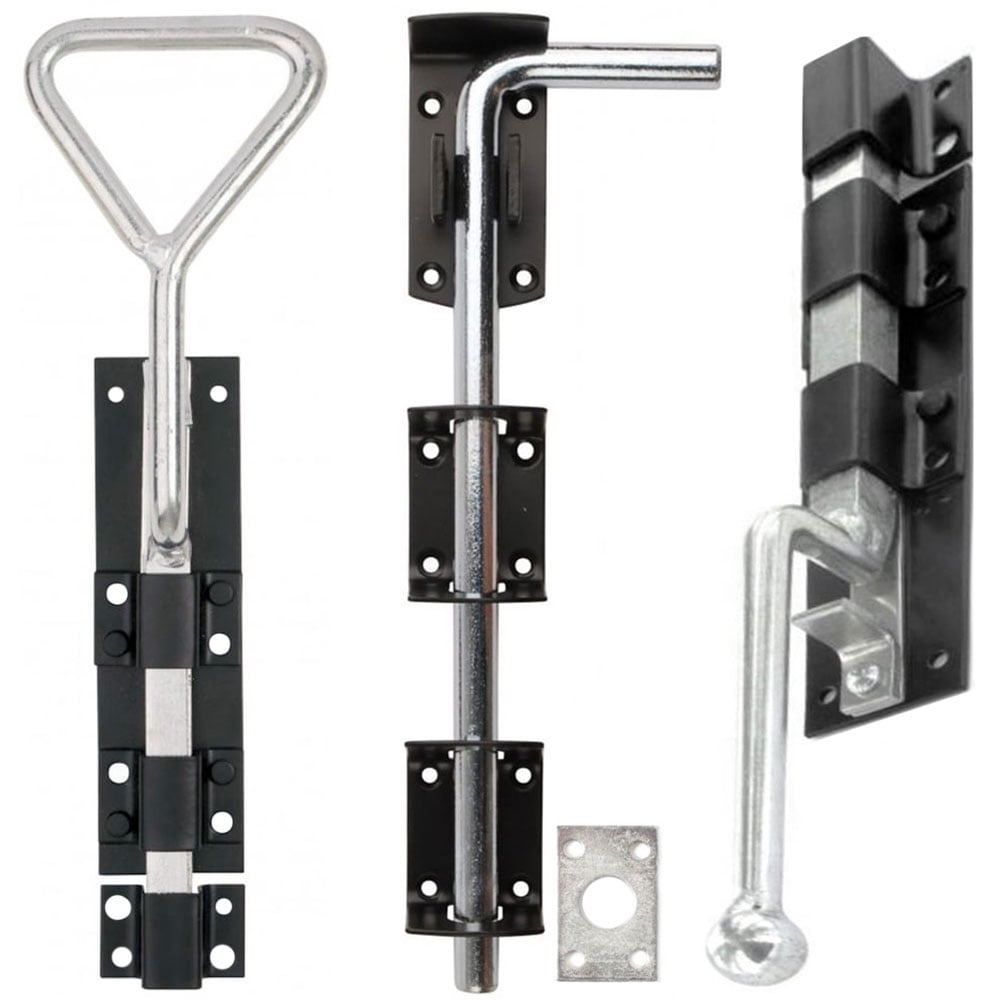

  • Available in three different styles - bow handle, monkey tail and drop bolt

  • Bow handle and monkey tail bolts are ideal for placement at the top of the garage door

  • A drop bolt is ideal for the bottom of the garage door

  • This bolt can be surface mounted horizontally or vertically

  • Secure with a smooth operational action

  • Suitable for use with garage doors, garden gates, stable doors etc

  • Bolt is fixed to a thick black frame and keep is included

  • All fixings for bolt are included

Dimensions


All dimensions are subject to a measurement tolerance of +/- 3mm


MONKEY TAIL BOLT

BOLT LENGTH: 150mm

BOLT DIAMETER: 16mm

BOLT ARM LENGTH: 170mm

BOLT ARM DIAMETER: 12mm

BOLT FIXING PLATE LENGTH: 180mm

BOLT FIXING PLATE WIDTH:  51mm

BOLT FIXING PLATE THICKNESS: 2mm

WEIGHT: 1.700 kg


DROP BOLT

BOLT VERTICAL LENGTH: 317mm

BOLT HORIZONTAL ARM LENGTH: 114mm

BOLT DIAMETER: 15mm

BOLT TOP BRACKET HEIGHT: 83mm

BOLT TOP BRACKET WIDTH:  44mm

BOLT TOP BRACKET PROJECTION: 27mm

BOLT KEEP HEIGHT: 61mm

BOLT KEEP WIDTH:  44mm

BOLT KEEP PROJECTION: 31mm

WEIGHT: 1.950 kg


BOW HANDLE BOLT
BOLT LENGTH: 150mm

BOLT DIAMETER: 16mm

BOLT BOW ARM LENGTH: 182mm

BOLT BOW ARM WIDTH:
 98mm

BOLT BOW ARM DIAMETER: 12mm

BOLT FIXING PLATE LENGTH: 181mm

BOLT FIXING PLATE WIDTH:  51mm

BOLT FIXING PLATE THICKNESS: 2mm

WEIGHT: 1.950 kg
