Single Pocket Door Cavity Sliding System (doors sold separately)

MATERIAL: Metal frame cassette, aluminium track and wooden jambs/edges
TYPE: Single pocket door sliding system
STYLE: Modern flush design
FIXINGS: Plasterboard screws, door brackets, fixing screws and plugs included
ADDITIONAL INFORMATION: Suitable for use with 35 - 45mm thickness doors

Description

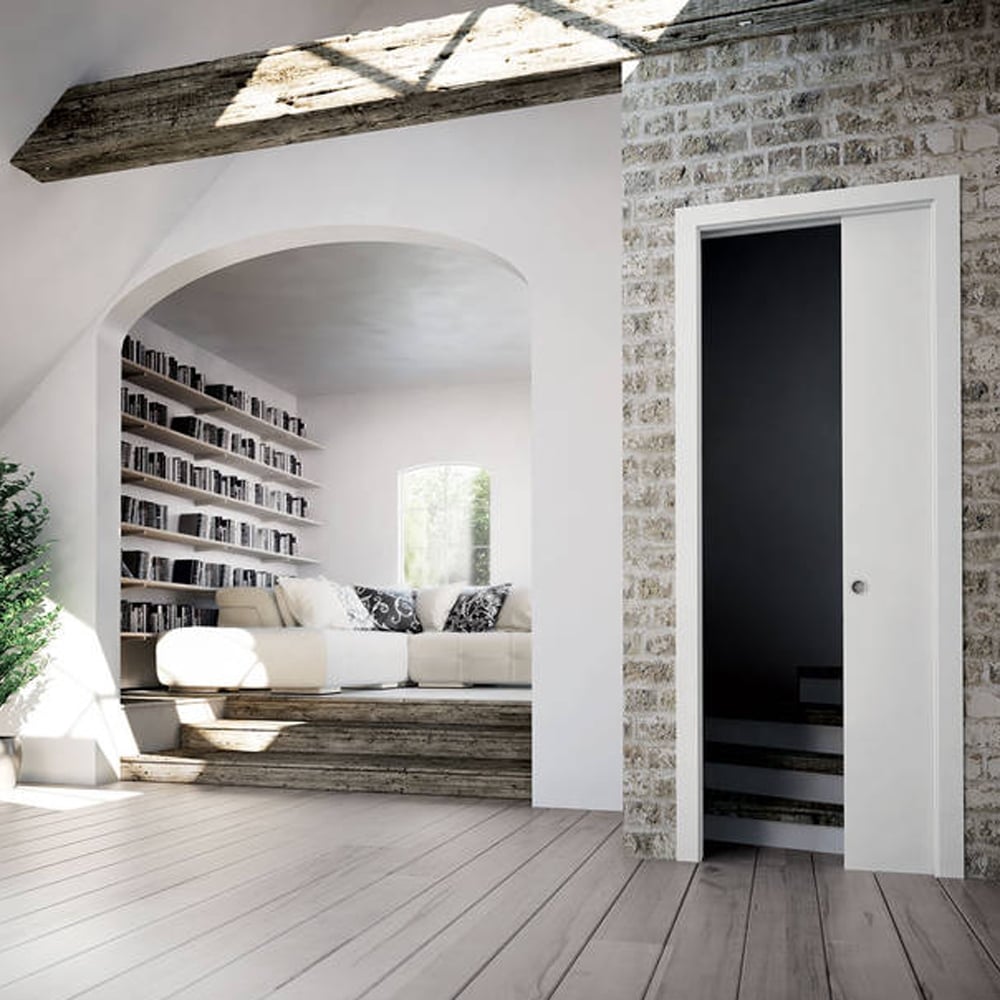

This Scrigno sliding door system utilises a pre-fabricated metal cassetee frame system to create a single pocket door. This modern system allows an internal door to slide into a pocket in the wall cavity, creating a contemporary feature point for your home as well as gaining vital extra space.

Each boxed set includes all the main components needed to install a long lasting, smooth running sliding door including a pre-made steel cassette pocket.

• High quality single pocket door cavity system
• Available for masonry and plasterboard walls
• Ready assembled for fast site installation
• Space saving - gain up to 2.6m space back compared to traditional door opening
• Allows doors between 35mm-45mm thick to be installed with a finished wall of 125mm
• Perfect for small spaces where a traditional door may be suitable or usable
• Endpost, crosspieces, cassette edge covers, door brushes and seals included with all systems
• Maximum weight is 100kg
• 2 year manufacture guarantee on all components
• We always recommend that doors must be pre-finished prior to installation with pocket door system
• Final adjustments to height must be done prior to fixing trim and architraves
• Please note: Architrave and door not included

WHAT'S INCLUDED IN THE PACK?

Metal frame cassette
Aluminium track
2 x Track brackets
1 x Wooden jamb
2 x Horizontal space bars
Jamb end post
2 x Cassette edge covers
2 x Crosspiece
2 x Rubber seals
2 x Brush seals
2 x Adjustable hanger
1 x Retaining hook
2 x Door stoppers
1 x Door guide
5 x Fixing spacers

PLUS: all necessary screws, plugs and door brackets included

ACCESSORIES ARE AVAILABLE FOR THIS ITEM:

Soft close mechanism - to dampen softly close the sliding door (sold separately)

• Minimum door width of 700mm required
• Can be retrospectively fitted
• Maximum door weight 35kg

Self closing mechanism - automatically pulls the door closed each time the door had been opened (sold separately)

• Once fitted this reduces the clear opening by 50mm
• Maximum door weight 40kg
• Includes damper system
• Can be retrospectively fitted

Dimensions

27" x 78" System (686mm x 1981mm):

Structural Opening Size: (W) 1466mm x (H) 2080mm
Walk through Area: (W) 656mm x (H) 1970mm
Cassette Width: 700mm
Weight: 38kg
Box Dimensions (H x W x D): 920 x 224 x 149mm

30" x 78" System (762mm x 1981mm):

Structural Opening Size: (W) 1592mm x (H) 2080mm
Walk Through Area: (W) 732mm x (H) 1970mm
Cassette Width: 750mm
Weight: 41kg
Box Dimensions (H x W x D): 970 x 224 x 149mm

33" x 78" System (838mm x 1981mm):

Structural Opening Size: (W) 1818mm x (H) 2080mm
Walk Through Area: (W) 808mm x (H) 1970mm
Cassette Width: 900mm
Weight: 46kg
Box Dimensions (H x W x D): 1120 x 224 x 149mm

36" x 78" System (914mm x 1981mm):

Structural Opening Size: (W) 1894mm x (H) 2080mm
Walk Through Area: (W) 884mm x (H) 1970mm
Cassette Width: 900mm
Weight: 46kg
Box Dimensions (H x W x D): 1120 x 224 x 149mm

Metric 626mm x 2040mm System:

Structural Opening Size: (W) 1310mm x (H) 2140mm
Walk Through Area: (W) 600mm x (H) 2030mm
Cassette Width: 600mm

Metric 726mm x 2040mm System:

Structural Opening Size: (W) 1510mm x (H) 2140mm
Walk Through Area: (W) 700mm x (H) 2030mm
Cassette Width: 700mm

Metric 826mm x 2040mm System:

Structural Opening Size: (W) 1710mm x (H) 2140mm
Walk Through Area: (W) 800mm x (H) 2030mm
Cassette Width: 800mm

Metric 926mm x 2040mm System:

Structural Opening Size: (W) 1910mm x (H) 2140mm
Walk Through Area: (W) 900mm x (H) 2030mm
Cassette Width: 900mm

Internal Frame Thickness: 70mm
Finished Wall Thickness: 125mm
Maximum Door Weight: 100kg

Technical Information

Scrigno guarantees that its frames for sliding doors are manufactured in compliance with the quality standards envisaged by the quality system certified to UNI EN ISO 9001-2008 standards.

Scrigno also offers a 2 year guarantee on all components
