Surface Mounted Spring Loaded Door Closer Satin Chrome

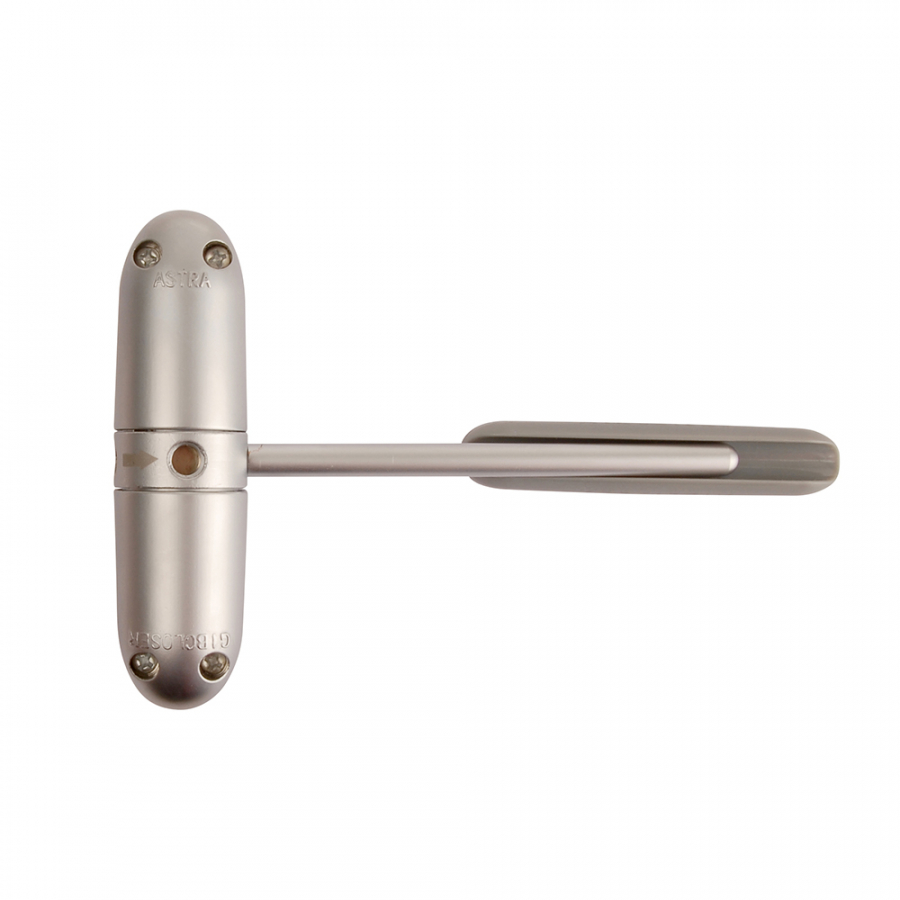

Name: Surface Mounted Spring Loaded Door Closer Satin Chrome
Brand: Excel
SKU: DP007493
Price: 13.98 GBP
Availability: Discontinued

Code:

DP007493

Brand:

Excel

Free UK Delivery

An automatic surface mounted door closer Helps reduce heat loss from rooms and draughts Fully adjustable (suitable for left and right handed doors) Closer has spring loaded adjustable tension Made from strong zinc casting Closes doors up to 68kg - latch engagement subj... Read More

View full product details

View questions about this product

Create a wishlist

Chris, Devon

Description

An automatic surface mounted door closer
Helps reduce heat loss from rooms and draughts
Fully adjustable (suitable for left and right handed doors)
Closer has spring loaded adjustable tension
Made from strong zinc casting
Closes doors up to 68kg - latch engagement subject to conditions
Not suitable for commercial use
Ideal for internal doors
Comes fully packaged
Easy to install with full instructions
Designed to compliment your door hardware (handles, hinges etc)
Available in a range of finishes (chrome, white or brass)
White closer is powder coated while the chrome and brass have a metallic finish
10 year manufacturer guarantee

MATERIAL: Zinc die-cast body
TYPE: Sprung loaded door closer
STYLE: Surface mounted for doors up to 68kg
FINISH: Available in four different finishes
FIXINGS: All fixings are included

Dimensions

HEIGHT: 117mm
OVERALL WIDTH: 150mm
WIDTH OF MECHANISM: 32mm
WEIGHT: 400g

Technical Information

INSTALLATION

The closer should be fitted vertically to the door jamb, on the hinged side of the door. Note: position the arm centrally over a solid part of the door. The arrow on the central boss should point away from the door. To protect the door, the slide plate needs to be fixed on the door for the arm to slide along.

SETTING THE TENSION

To set the tension, turn the central boss in the opposite direction to the arrow. Note: beware of over tensioning as this may cause the door to slam, causing injury or may damage the spring. Using the arm and steel bar supplied, rotate the central boss away from the door. Locate the hole nearest the door and screw in the arm. Rotate and insert the steel bar into the next available hole. Repeat the operation, one hole at a time, until the required tension is achieved.
