MATERIAL: Zinc die-cast bodyTYPE: Sprung loaded door closerSTYLE: Surface mounted for doors up to 68kgFINISH: Available in four different finishesFIXINGS: All fixings are includedADDITIONAL FEATURES: Fire rated (30 minutes protection rated to BS EN 1634-1) D...Read More
MATERIAL: Zinc die-cast body
TYPE: Sprung loaded door closer
STYLE: Surface mounted for doors up to 68kg

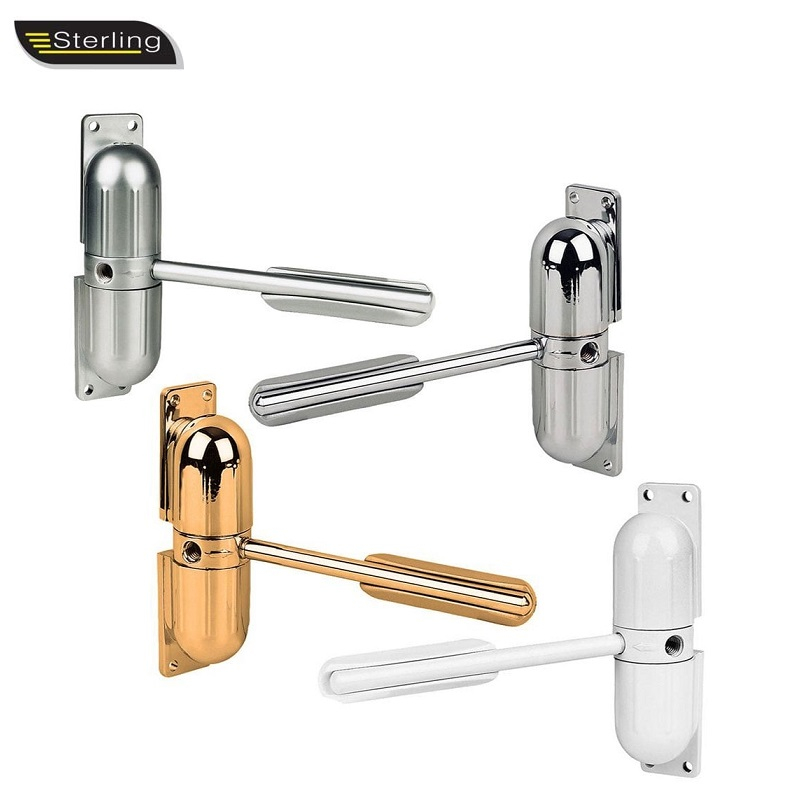

FINISH: Available in four different finishes
FIXINGS: All fixings are included
ADDITIONAL FEATURES: Fire rated (30 minutes protection rated to BS EN 1634-1)
HEIGHT: 117mm
OVERALL WIDTH: 150mm
WIDTH OF MECHANISM: 32mm
WEIGHT: 400g
Technical Information
INSTALLATION
The closer should be fitted vertically to the door jamb, on the hinged side of the door. Note: position the arm centrally over a solid part of the door. The arrow on the central boss should point away from the door. To protect the door, the slide plate needs to be fixed on the door for the arm to slide along.
SETTING THE TENSION
To set the tension, turn the central boss in the opposite direction to the arrow. Note: beware of over tensioning as this may cause the door to slam, causing injury or may damage the spring. Using the arm and steel bar supplied, rotate the central boss away from the door. Locate the hole nearest the door and screw in the arm. Rotate and insert the steel bar into the next available hole. Repeat the operation, one hole at a time, until the required tension is achieved.
