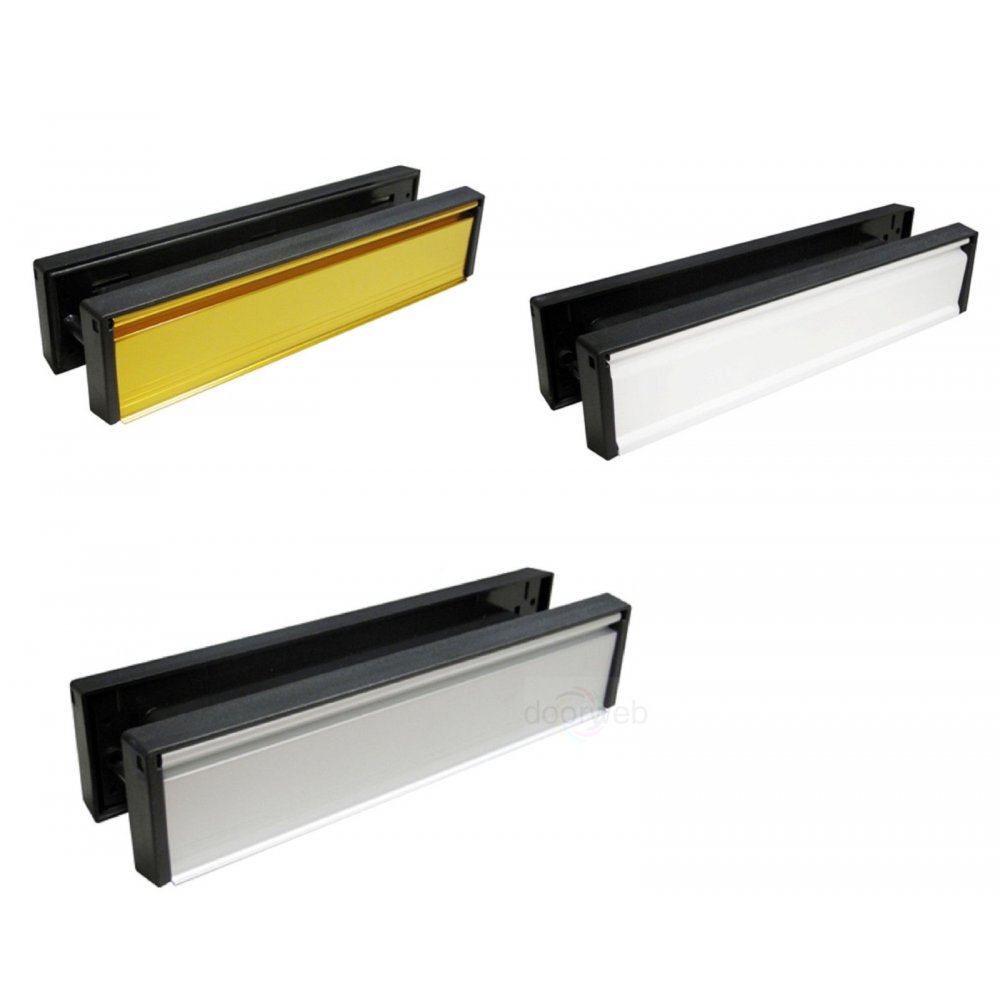

UPVC Front Door Letter Plate Set

Code:
MP/B30

This item is out of stock and not available to purchase.

Material: Plastic (surround) and Aluminium (flap)Type: Letter Plate with Flap and BrushesStyle: Double Sided for Front DoorFixings: All fixings includedDescription This premium quality double sided letter plate is British standard approved with an adjustable telescopic sleeve ... Read More

Create a wishlist

"A quality door at a good price"

JOHN

Description


Material: Plastic (surround) and Aluminium (flap)

Type: Letter Plate with Flap and Brushes

Style: Double Sided for Front Door

Fixings: All fixings included

Description


This premium quality double sided letter plate is British standard approved with an adjustable telescopic sleeve - a perfect option for wood, UPVC and composite doors.


The letter plate has internal and external spring loaded flaps and a blacks surrounding frame. The external piece is fitted with a weather proof seal and the internal piece has double brush draught resistant brushes.

  • Draught resistant brushes

  • Spring loaded

  • Double sided

  • Suitable for either wood or UPVC composite doors

  • Water resistant seals

  • Scratch resistant finish

  • Choice of three finishes

  • Fixing screws included

  • Two sizes to fit either a 20-40mm or 40-80mm door thickness

  • BS EN 13724:2002 approved


Please note: Brushes to go to the outside when fitting

Dimensions


Opening Height:
42mm

Opening Width: 288mm

Screw to screw centre:
275mm

Overall Height: 67mm

Overall Length: 302mm

Top Section: 23mm

Bottom Section: 6mm

Measuring and Fitting Guide


Important: Please check the screws are suitable for your application as they will not suit all door thickness. THIS MUST BE DONE BEFORE INSTALLATION.



MEASURING GUIDE:

First remove your letterbox by lifting the flap and unscrewing the fixing screws or bolts.


Once the letter box is removed measure the exact width and height of the hole in your door and check the the sizes against the diagram below.


Measure the door mid rail - panel thickness to determine the letter box thickness needed (i.e. 20/40mm or 40/80mm). You may well find there are a few millimetres difference to your existing letter box, the door mid-rail or panel aperture can easily be trimmed using a hacksaw.


You will need to determine the thickness of your door panel or mid rail in order to select the correct size.





Please note: Brushes to go to the outside when fitting.


Dimensions

Size 20mm-40mm Door Thickness
40mm-80mm Door Thickness

Details

Finish Gold
Silver
White
