Find out moreMATERIAL: Hardwood

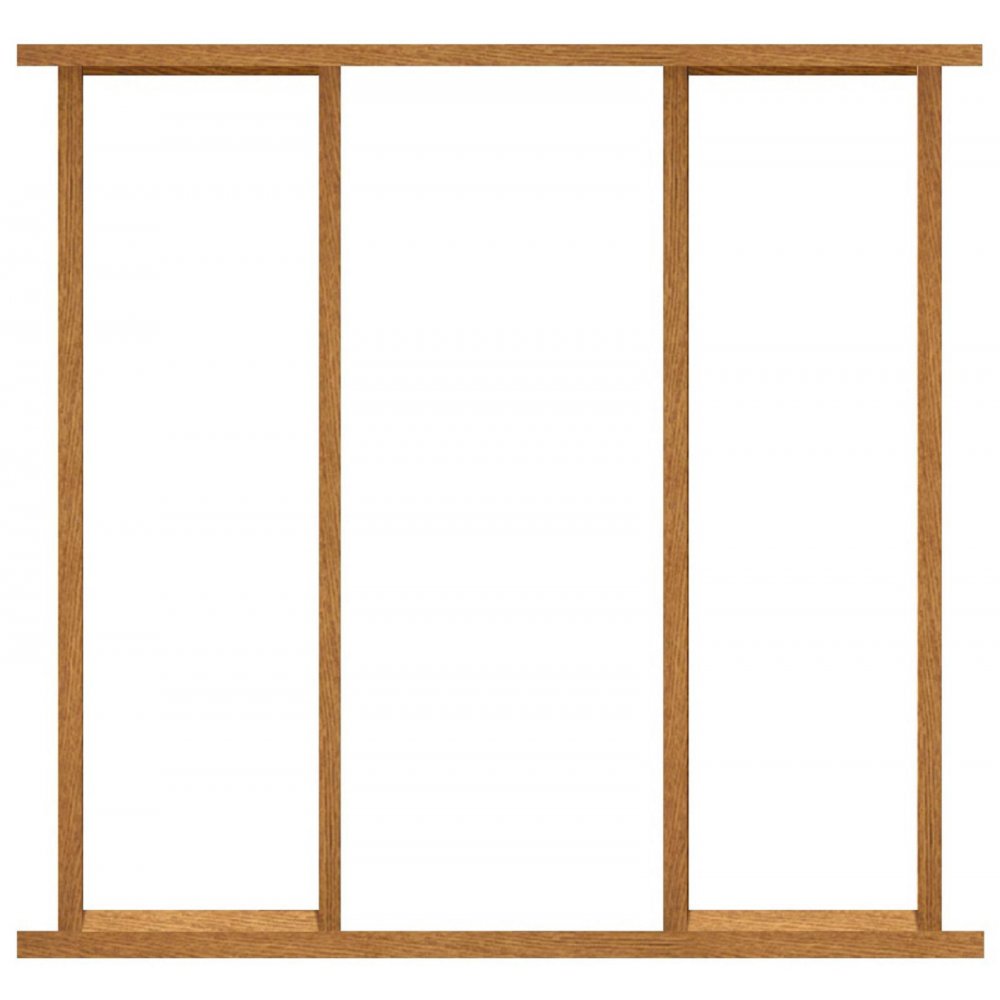

TYPE: Frame with Sidelights
STYLE: Double Side Light

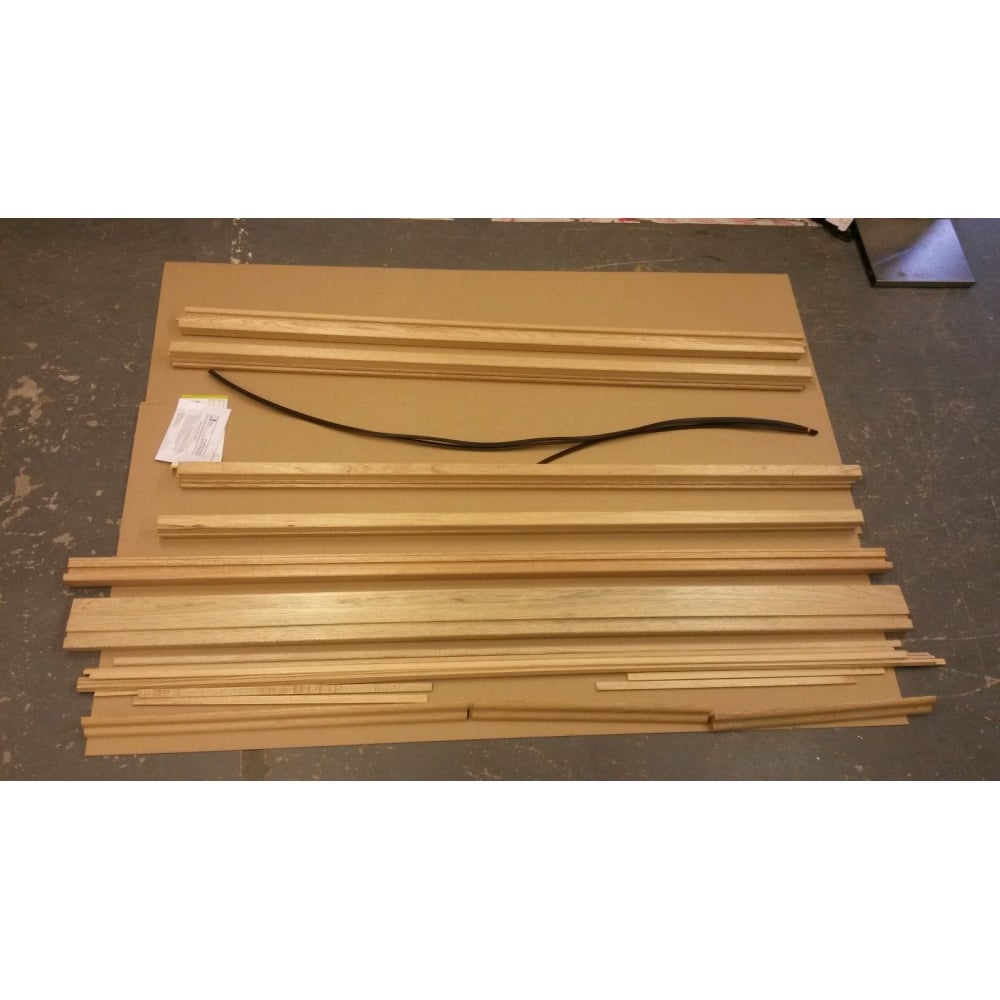

FIXINGS: Supplied in a flat pack. Fixings not included
Hardwood timber side light kit, ideal for direct double glazing or fitting universal or matching side light panels to main door (additional hardwood beads not supplied will be required if direct double glazing)
When assembled mullions can be set to suit desired door width and overall frame size requirements. XL Universal side light dimension can be reduced from 588mm by up to 120mm per sidelight (60mm each side) if required
78" HEIGHT DOORS (Overall frame dimensions when using a 33" x 78" door)
FRAME HEIGHT: 2067mm
FRAME WIDTH: 2178mm
80" HEIGHT DOORS (Overall frame dimensions when using a 32" x 80" door)
FRAME HEIGHT: 2118mm
FRAME WIDTH: 2154mm
FRAME HEAD (x1): 57mm x 68mm x 2179mm
FRAME MULLION (x2): 78" - 68mm x 68mm x 2004mm / 80" - 68mm x 68mm x 2055mm
FRAME JAMB (x2): 78" - 57mm x 68mm x 2004mm / 80" - 57mm x 68mm x 2055mm
FRAME CILL (x1): 40mm x 134mm x 2179mm
OTHER COMPONENTS
WEATHER BARS: 1 x 918mm, 2 x 600mm
GROOVE INFILL: 2 x 2200mm
COVER BEAD: 4 x 2100mm, 4 x 700mm
DRIP BEAD MOULDING: 1 x 2253mm
Manufacturer Technical Fact Sheet and Assembly Instructions (opens in new window)
PLEASE NOTE: This product is only compatible with XL Joinery sidelights, you cannot use your own glazing.
