XL Joinery Ledged & Braced Shed Door/Wooden Gate

Code:
LB
Brand:
XL Joinery

With its traditional boarded vertical panel design, this external rustic style pine door or gate by XL Joinery is crafted using a tongue and groove method, where each panel interlocks with a ridge on one side. The LB ledged & braced door comes with loose pinned braces, allowin...Read More

View full product details
View questions about this product
from
£85.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Configure & Buy
Delivery from: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Tuesday, Dec 24th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

5% off orders over £500

USE CODE: WRAP5
CODE COPIED
Ends: 31 Dec 2024 23:59
Description Specification Downloads Q&A Reviews Product options

Description

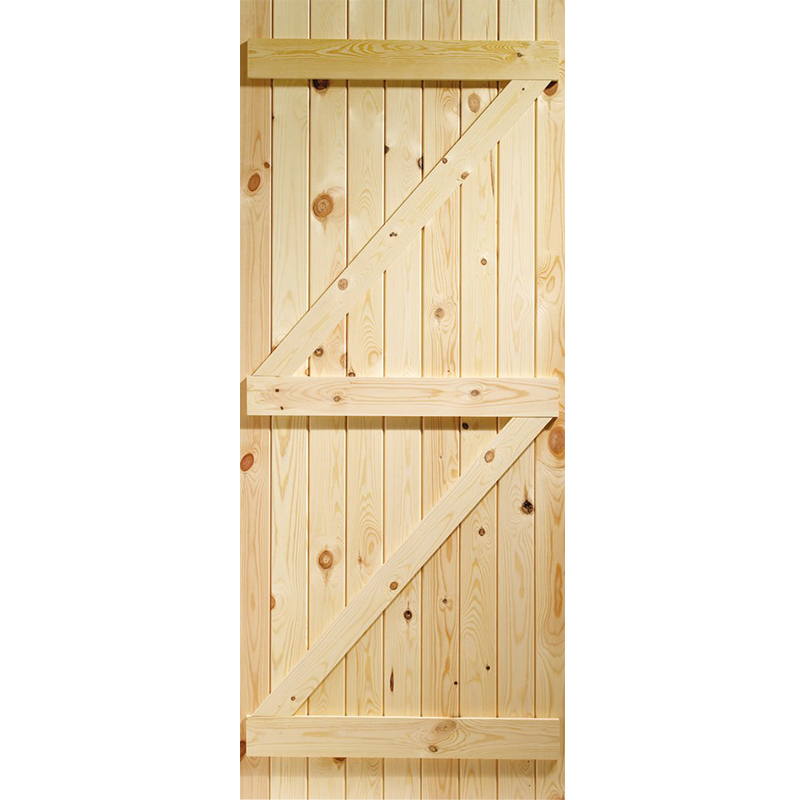

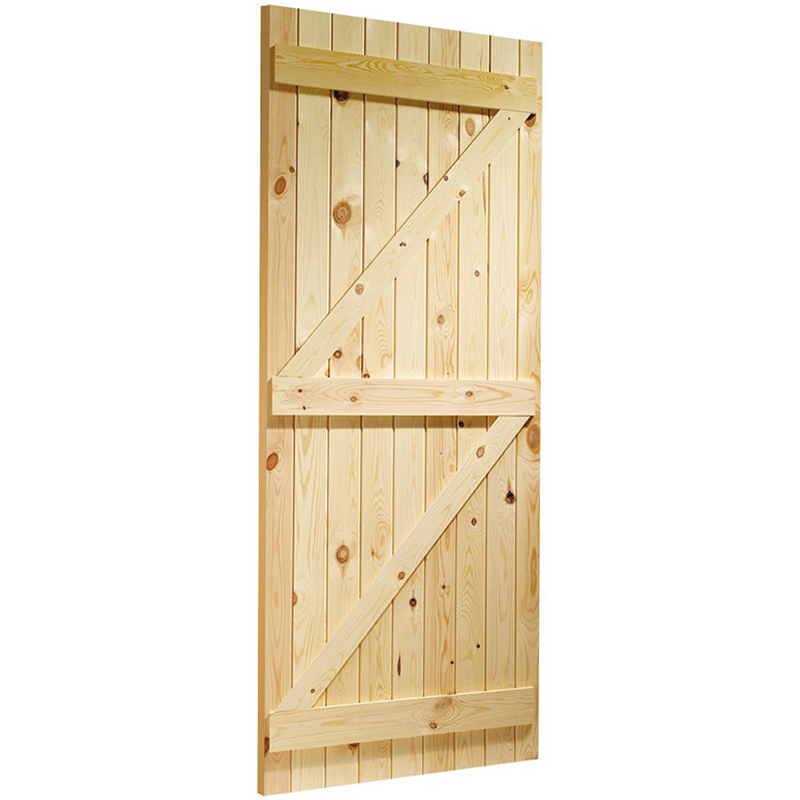

With its traditional boarded vertical panel design, this external rustic style pine door or gate by XL Joinery is crafted using a tongue and groove method, where each panel interlocks with a ridge on one side. The LB ledged & braced door comes with loose pinned braces, allowing for adjustments as needed. The boarded braces are secured using staples. Ensure hinges are positioned where the braces point downward (as shown on the left-hand side in the image).

Features & Benefits: XL Joinery Ledged & Braced Shed Door/Wooden Gate

  • Boarded, ledged and braced
  • Ready for home finishing
  • Softwood Pine
  • Natural colour
  • FSC Certified
  • Traditional boarded vertical panel design
  • All braces fixed in place with staples
  • Solid untreated softwood requires sealing and painting
  • Staple holes will need filling prior to decoration
  • Available in a range of sizes (27"-36")
  • Manufactured to a high standard

Finish

This wooden door/gate is supplied unfinished, ready to paint or stain in a finish that will complement the rest of your property.

Technical Information

  • Not recommended for use externally where exposed to central heating on the inside.It is essential these doors are thoroughly painted prior to exposure to the weather in accordance with our door care advice. Face knots should be sealed prior to painting to prevent resin bleed, which can result where exposed to ultra violet light. Screw or staple holes will need filling prior to decoration.Must be installed and sealed in accordance with our "Door Care and Maintenance Advice" which comes supplied with each door.It is never advisable or intended that timber external doors be fully exposed to the worst elements of the weather, even if well coated. A southerly or south-westerly elevation is the worst direction for prevailing weather and exposure to the hottest sun can seriously degrade external doors.We recommend these are set back from the front face of the building or covered by a canopy.Always fit with a suitable weatherboard regardless of frame cill type fitted to prevent droplets of moisture hanging from the door bottom.We recommend washing down with warm water and detergent every two to three years and re-coating in order to retain good appearance.

Storage

  • When receiving a door, it should be laid flat, fully supported off the floor in a cool, dry and fully ventilated area with protective packaging complete.

Product Specification

  • Door Thickness: 16mm (boarded panels), 38mm (boarded panels including ledging)
  • Weight: 33kg
  • Glazing: No Glazing
  • Finish: Unfinished
  • Colour: Natural
  • Door Handing: Left or Right Handed
  • Core: Boarded Ledged and Braced
  • Material: Softwood
  • Material: Pine
  • Trim Tolerance - Top: 12mm
  • Trim Tolerance - Bottom: 12mm
  • Trim Tolerance - Sides: 12mm

Standards & Certification

  • Manufactured from FSC Certified Wood: The Forest Stewardship Council is an independent organisation that supports the responsible management of forests worldwide.

Please note:

  • These doors are not recommended for use internally.
  • Must be installed and sealed in accordance with manufacturers advise which comes supplied with each door.
  • Not recommended for use externally where exposed to central heating on the inside.

Dimensions

Door Height 1981mm
2032mm Door Thickness 44mm Door Width 686mm
762mm
813mm
838mm
915mm Size 1981mm x 686mm (78x27 inch)
1981mm x 762mm (78x30 inch)
1981mm x 838mm (78x33 inch)
1981mm x 915mm (78x36 inch)
2032mm x 813mm (80x32 inch)

Details

Finish Unfinished Colour Brown Door Handing Left or Right Handed Door Type Ledged & Braced
Wooden Gate
Material Pine Weight 29kg
30kg
31kg
33kg
35kg Height 1981mm
2032mm Door Location External Door Style Cottage
Trim Tolerance - Top 12mm Trim Tolerance - Bottom 12mm Trim Tolerance - Sides 12mm

Downloads

There are no product downloads to show.

Questions & Answers

Question:

My brick shed has two doors both 76.2 cm wide but they are only 177 cm high. Is there enough 'spare' at the top & bottom of your doors for me to cut off 11 cm from each end?

Answer:

It would not be possible to trim our shed doors by 11cm on each end unfortunately. Please find attached their listed trimming tolerances:

Trim Tolerance - Top: 12mm

Trim Tolerance - Bottom: 12mm

Trim Tolerance - Sides: 12mm

Question:

Can these be cut to size I need 1960x750?

Answer:

We do not recommend trimming this door to this size. It would void the warranty of the door.

Question:

Can you please let me know the thickness of the door, with and without the braces? Also, what is the total height to the external points of the door braces?

Answer:

The vertical panels have a thickness of 16mm, and the braces have a thickness of 20mm, meaning that where braced, the door is 36mm thick.

Question:

Can this door be cut. Dow by me .. experienced d. I.y person

Answer:

  • Trim Tolerance - Top: 12mm
  • Trim Tolerance - Bottom: 12mm
  • Trim Tolerance - Sides: 12mm

Question:

Photo shows both sides the same is that right? Or is one side plain

Answer:

The ledges and braces of this door are only on/visible one side of the door.

Question:

What is the maximum trim top and bottom for this door? Thanks

Answer:

  • Trim Tolerance - Top: 12mm
  • Trim Tolerance - Bottom: 12mm
  • Trim Tolerance - Sides: 12mm

Question:

I need a replacement shed door height 1800mm could this door be shaved down to that?

Answer:

Unfortunately, these shed doors can not be trimmed beyond the advised amount.
